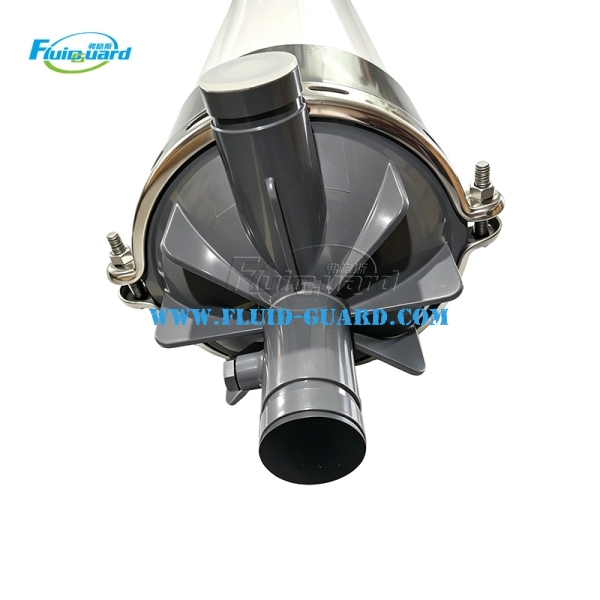

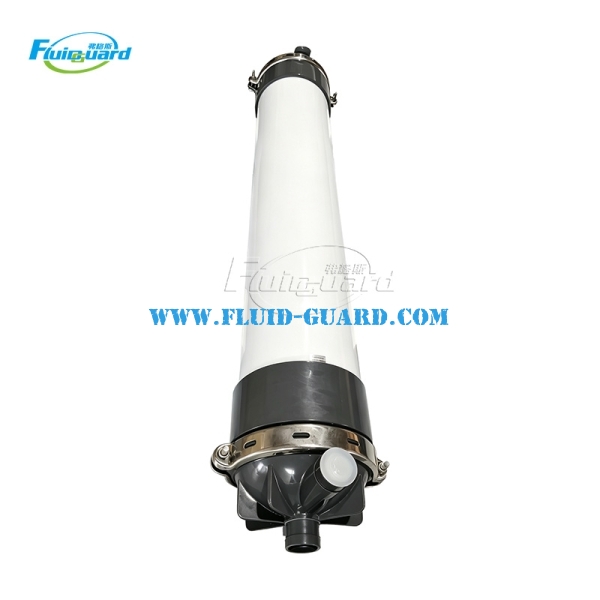

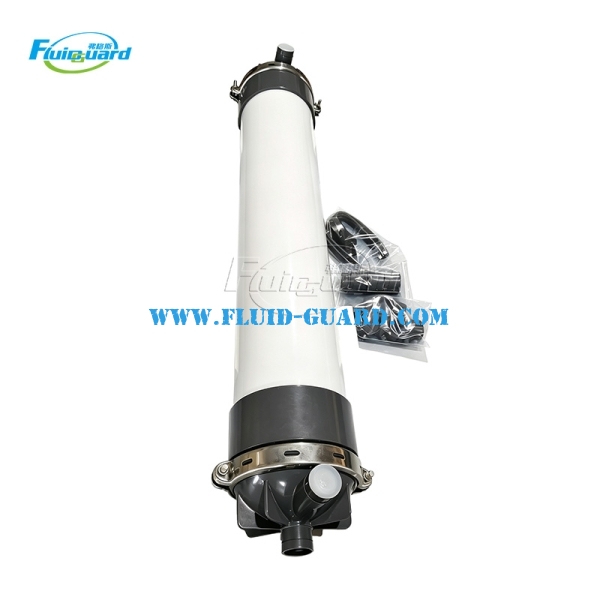

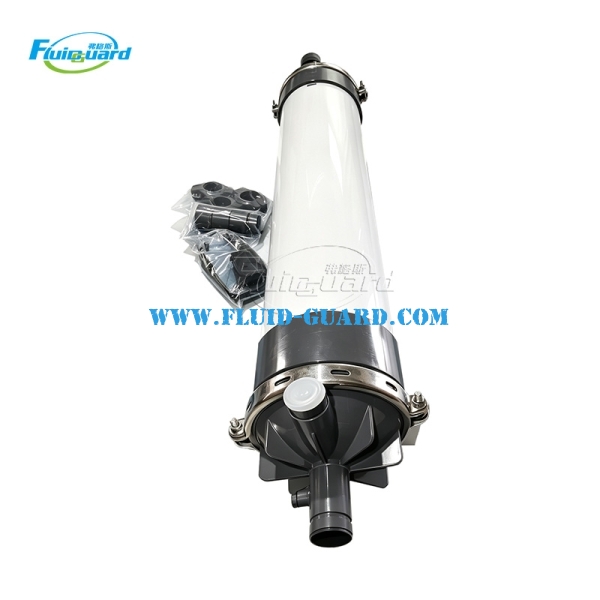

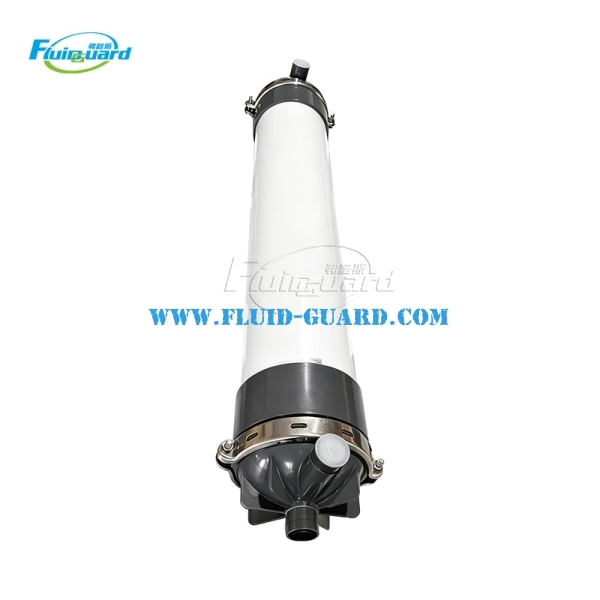

Ultrafiltration (UF) Membrane Water Filter Cartridge

The Ultrafiltration (UF) Membrane Filter Cartridge is a high-efficiency separation device designed for precise removal of suspended solids, bacteria, viruses, colloids, and macromolecular organics from water and liquid streams. It operates on a pressure-driven membrane filtration principle, with pore sizes typically ranging from 0.01 to 0.1 microns.

Key Features

• High Filtration Precision: Effectively removes particles ≥0.01 µm, ensuring superior effluent quality.

• Low Operating Pressure: Works efficiently at low transmembrane pressures, reducing energy consumption.

• Chemical Resistance: Compatible with a wide pH range and tolerant to moderate chlorine levels.

• Long Service Life: Robust membrane material offers excellent mechanical strength and anti-fouling properties.

• Easy Maintenance: Supports regular backwashing and chemical cleaning to restore permeability.

Typical Applications

• Drinking water and purified water pretreatment

• Wastewater treatment and reuse

• Food and beverage processing

• Pharmaceutical and biotech liquid clarification

• Industrial process water polishing

Operating Conditions (General Reference)

• Feed water temperature: 5–45°C

• Operating pressure: ≤0.3 MPa (adjustable per design)

• pH range: 2–11 (depending on membrane material)
