High Quality Diaphragm Pumps A100-NAA-VVYY-B30

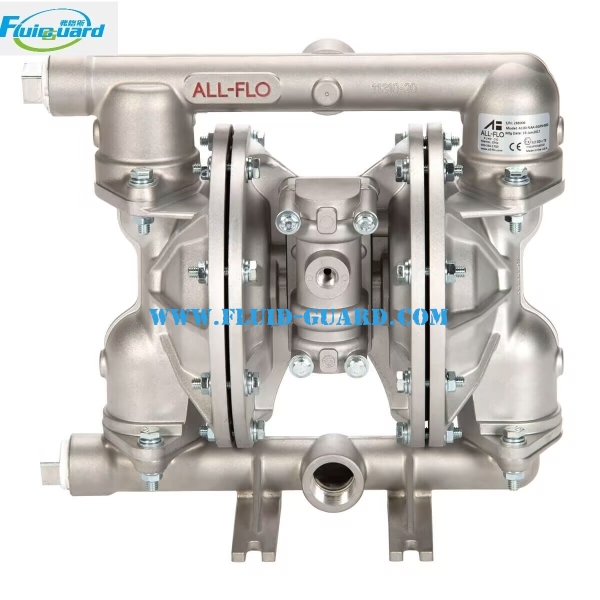

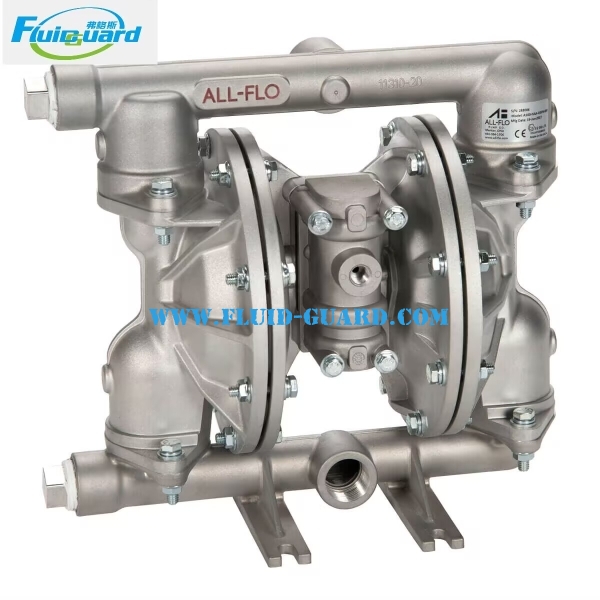

The All-Flo A100-NAA-VVYY-B30 is a 1-inch air-operated double-diaphragm pump (AODD) belonging to All-Flo's A100 series. Its main features include an all-aluminum construction and corrosion-resistant FKM (Viton®) seals, making it well-suited for handling a variety of corrosive, high-viscosity, or particle-laden fluids.

Operating Principle: Powered by compressed air, the pump delivers fluid through reciprocating diaphragms. This design allows it to run dry without damage, offers explosion-proof safety, and requires no electric power.

Port Size: 1 inch. Maximum flow rate is approximately 182 L/min (about 48 GPM), with a maximum working pressure of 8.3 bar (120 psi).

Self-Priming Capability: It features strong self-priming performance, with a dry suction lift of up to 5.2 meters.

Suitable Media: Based on its FKM seal material, it is particularly ideal for transferring oils, solvents, mild acids/bases, and various chemicals.
