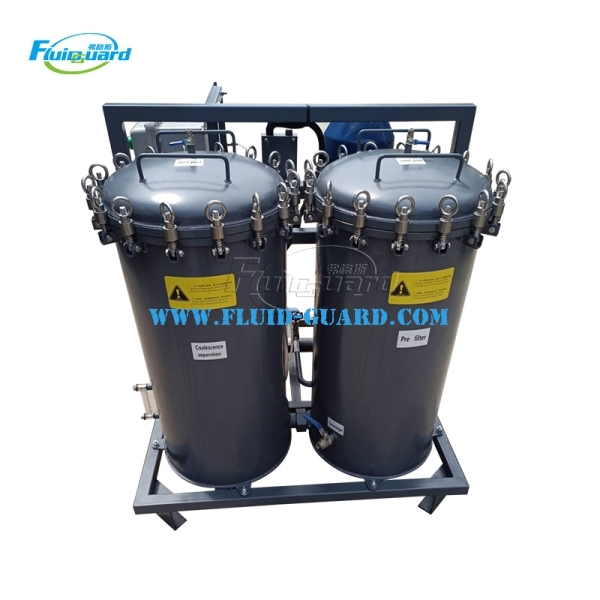

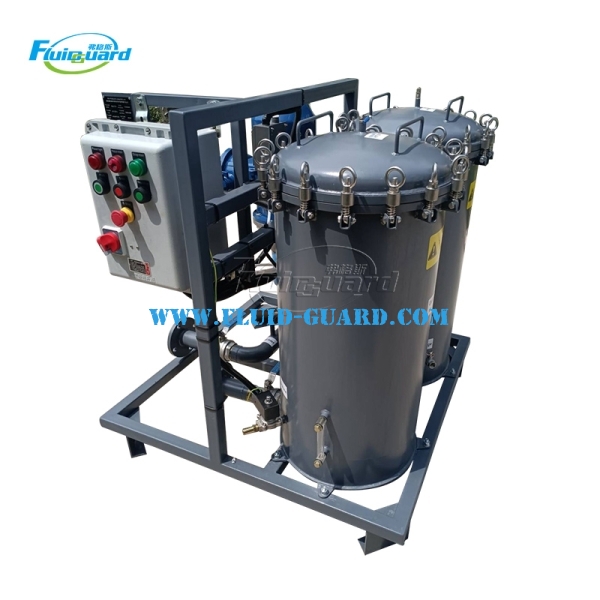

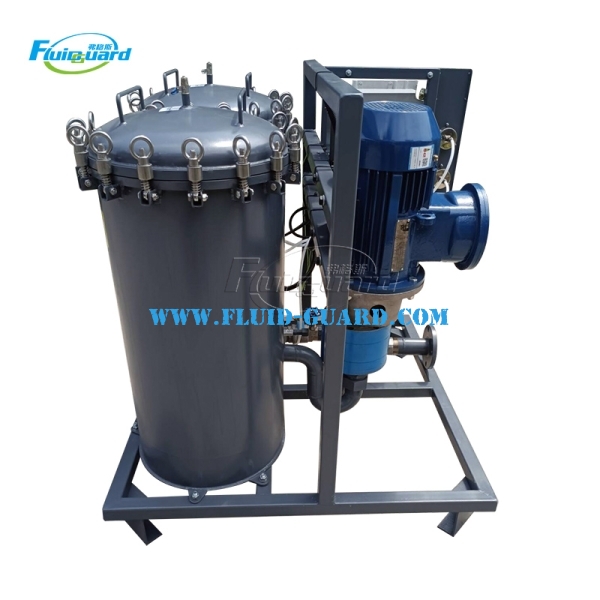

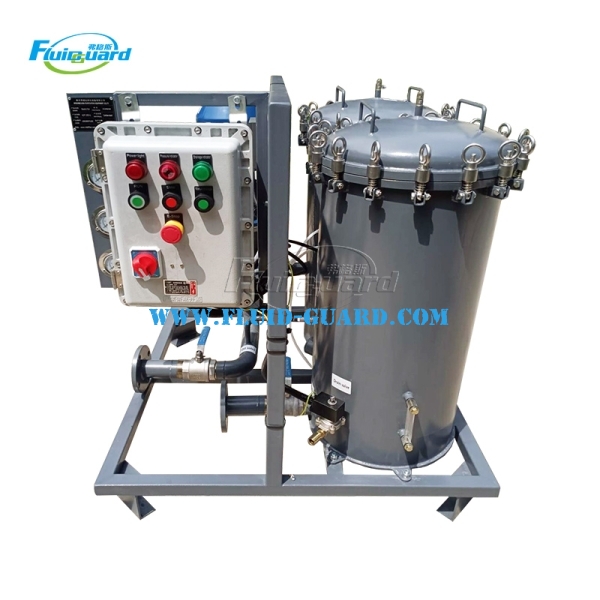

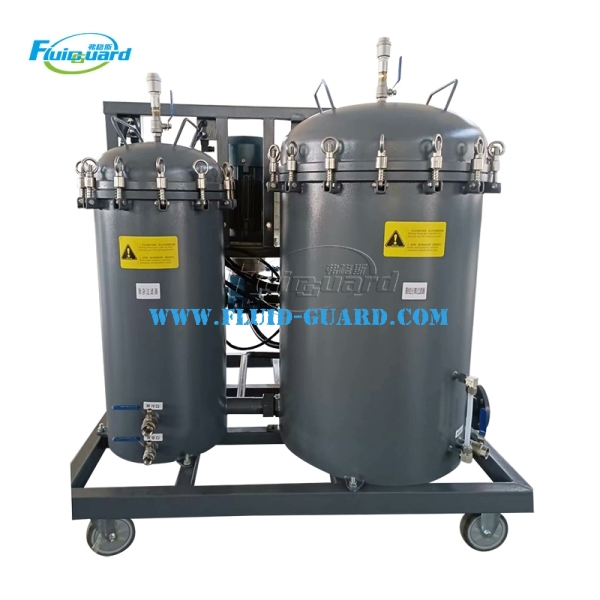

Diesel Oil Coalescer Filter Machine 100L/Min

The Diesel Oil Coalescer Filter Machine is a skid-mounted purification system designed to remove water and particulate contamination from diesel fuel. It combines coalescing and separation technologies to protect engines and fuel systems from the harmful effects of water and dirt.

⚙️ Key Specifications and Function

These systems are typically configured for efficient, high-capacity fuel polishing:

• Design and Configuration: The equipment is often built as a duplex (dual-vessel) system on a single skid, allowing for continuous operation or the ability to switch between vessels during maintenance.

• Construction Materials: The vessels are commonly made from materials such as carbon steel or stainless steel to withstand demanding industrial environments.

• Working Principle: The system utilizes a two-stage process. The first stage uses a coalescing filter element to merge fine water droplets into larger ones. The second stage uses a hydrophobic separator element to repel the water, which then settles to the bottom for removal.

📊 Performance and Applications

• Filtration Efficiency: These systems can remove water from fuel in an emulsified state down to as low as 25 PPM (parts per million).

• Flow Rates: The machines are available in various sizes with specific flow capacities, such as the XE1500P model rated at 1500 LPH (liters per hour).

• Typical Use Cases: They are ideal for fuel storage tank maintenance, marine engine fuel systems, and diesel-powered equipment in industries like mining and construction.
