High Precision Movable Type Oil Filtration Unit for Removal Solid Particles from Oil

Working Principle

It relies on an integrated low-noise self-priming gear pump to circulate oil through graded filter stages step by step:

1. Primary coarse filter: Block large impurities to protect the pump and extend service life of fine filters.

2. Medium coalescing stage: Separate free water, emulsified water and tiny oil sludge.

3. High-precision fine filter: Capture micron-level solid contaminants, bringing oil cleanliness up to NAS 5–8 standard.Pressure gauges monitor filter clogging in real time; overflow and thermal overload protection prevent system damage.

Core Structure

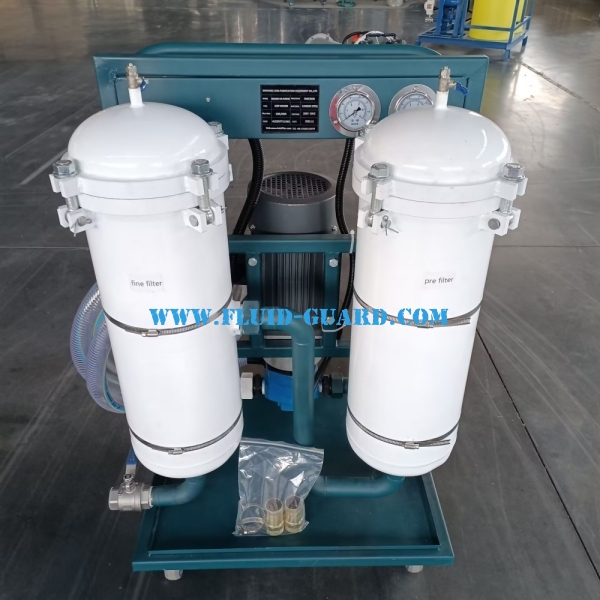

1. Mobile frame with heavy-duty universal casters (easy push & position shift between equipment workshops).

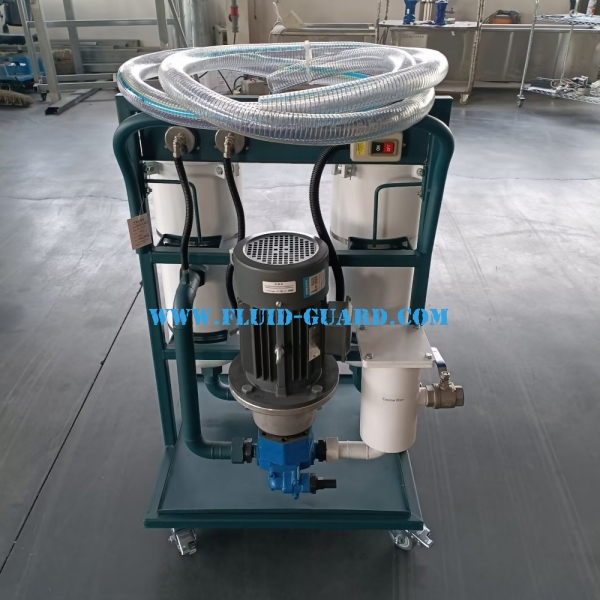

2. Drive system: Explosion-proof motor + gear pump, power supply AC 380–400V 50Hz.

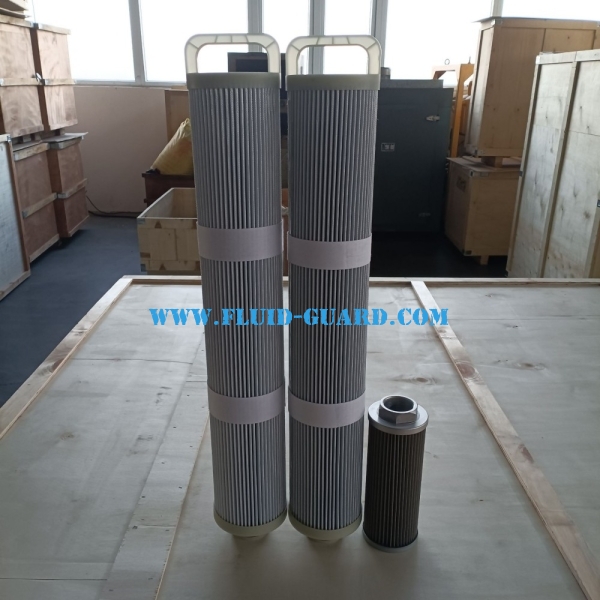

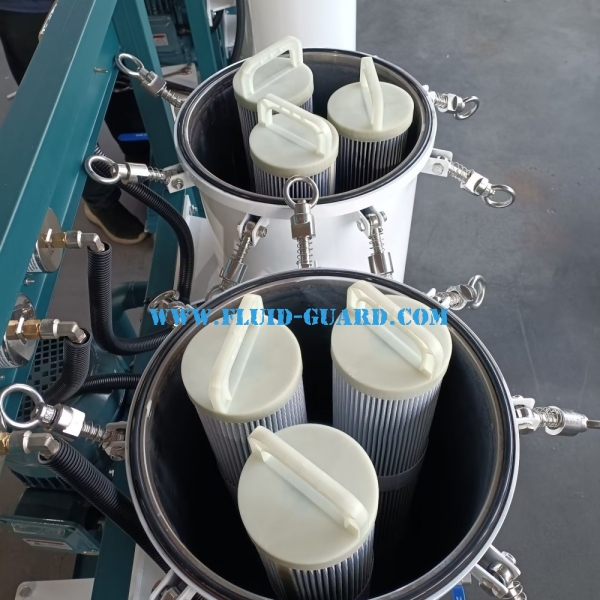

3. Multi-stage filter housings with quick-open cover for fast cartridge replacement.

4. Safety components: Pressure gauge, overflow valve, thermal relay, oil inlet/outlet hoses.

5. Optional upgrades: Magnetic absorption core, automatic water drain, PLC control cabinet.
