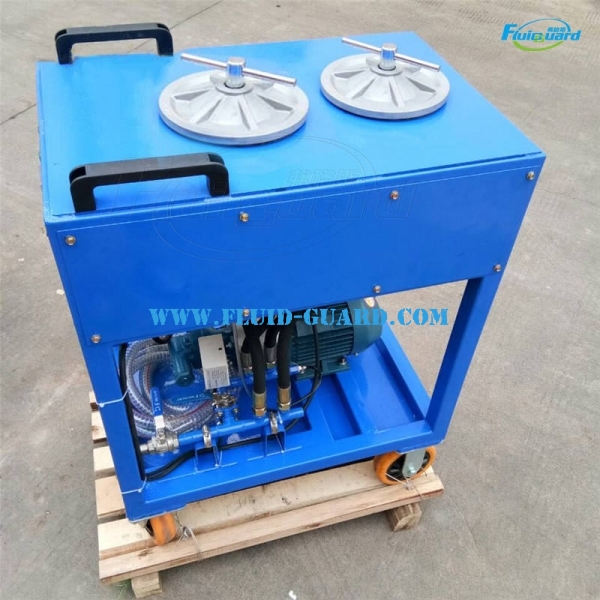

Double Stage Ultra-precision Lube Oil Purifier Machine for Hydraulic Oil Purification

Rated flow

3 L/min

9 L/min

15 L/min

24 L/min

Rated pressure

1.6 MPa

Original pressure loss

≤0.25 MPa

Water content after filtration

5-30 ppm

Air content after filtration

≤0.2%

Coarse filter accuracy

100 μm

Fine filter accuracy

NAS1638 3-6

Motor power

0.2 Kw

0.4 Kw

0.55 Kw

 0.75 Kw

Voltage

Customized

Weight

66 Kg

90 Kg

112 Kg

 135 Kg

Dimensions(mm)

380×500×680

600×500×680

860×500×1000

 1100×500×1000
