Type: Diesel Fuel Filter
Material: Carbon steel
Lifetime: 10 yearsDescription For many places we need a generator, when the power supply is cut down, then we can use our generator to create power. For Generators, the diesel are used and it’s very
Get QuotationProduct Details
Description
For many places we need a generator, when the power supply is cut down, then we can use our generator to create power.
For Generators, the diesel are used and it’s very important to keep the diesel to be clean.
It’s necessary to use a diesel purifier to purify the diesel.
It not only need to remove impurities in the diesel, but also need to remove water from the diesel.
If the diesel has a problem, it may cause the generator shut down, or have problems.

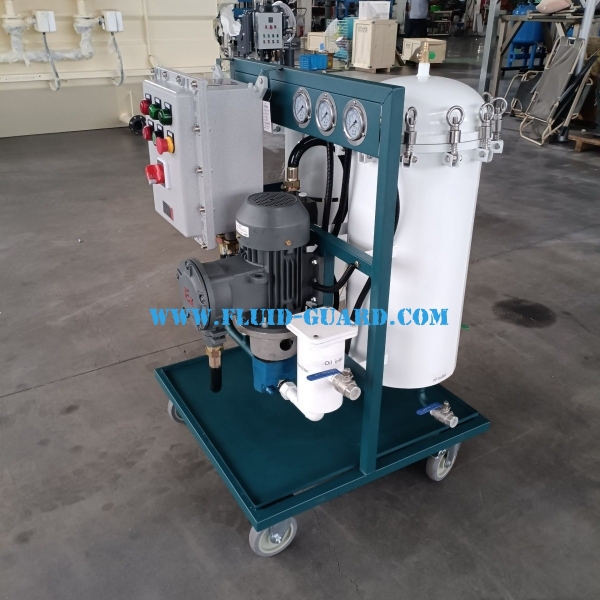

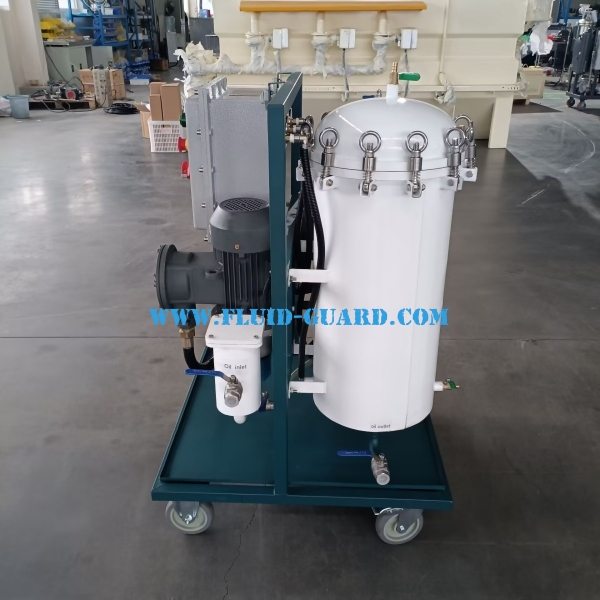

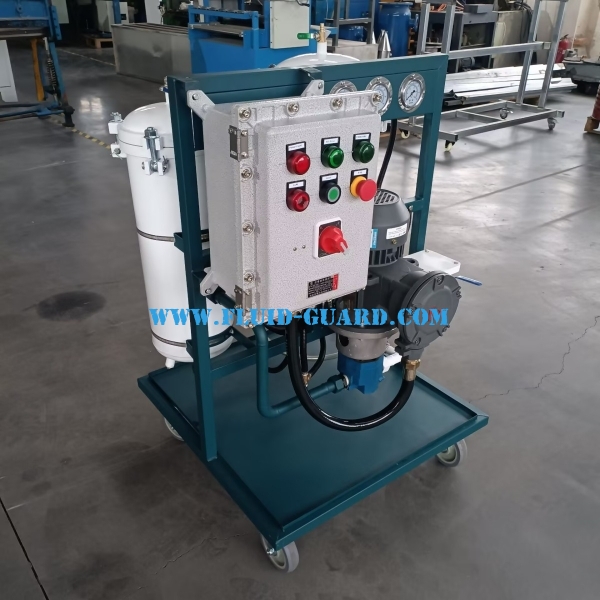

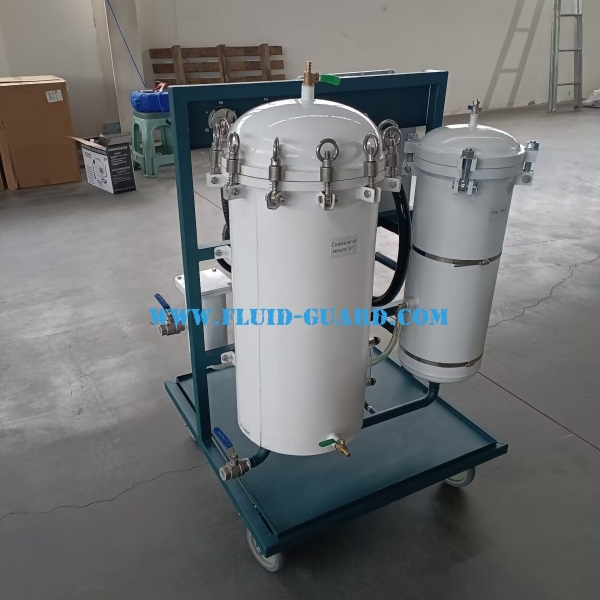

And sometimes you may need a movable diesel purifier so to purify the diesels from different generators.
Model | AOP-D25 | AOP-D50 | AOP-D100 | AOP-D150 | AOP-D200 | AOP-D400 |
Flow rate(L/M) | 25 | 50 | 100 | 150 | 200 | 400 |
Pressure(Mpa) | 0.6 | |||||
Pressure loss(Mpa) | ≤0.01 | |||||
Water contents | ≤100 ppm | |||||
Coarse filter precision(um) | 100 | |||||
1st Fine filter precision(um) | 10、20 | |||||
2nd Fine filter precision(um) | 3、5 | |||||
DP(Mpa) | 0.2 | |||||
Temperature | 25-80°C | |||||
Viscosity(cSt) | 10-120 | |||||
Voltage | AC380V 3 phase 50HZ | |||||
Motor Power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13 |
Weight(kgs) | 150 | 200 | 300 | 520 | 860 | 2860 |
