: Vacuum Oil Dehydration Heavy Fuel Oil Purifier Machine

Features:

Application:hydraulic decolorization function vacuum oil filter

Function:Remove Water and impurity

Raw material:Carbon Steel
Get Quotation

Product Details

Item
Unit
AOP-VS25 ~VS150
Flowrate
L/min
25 ~ 150
Working Pressure
Mpa
≤0.3
Rated Vaccum degree
Mpa
-0.06 to -0.099
Break down voltage
KV
≥ 55 ~65
Water Content
PPM
≤50
Air Content
%
≤0.1
Coarse filtration
um
100
Fine filtration
um
3 、5
Voltage
V
AC 380V three phase 、50Hz
adjustable
Heat power
KW
6-15 ~ 60
Power
KW
7-17 ~ 65
Weight
Kg
195 ~ 700
Packing Dimensions
mm
605*882*1225mm etc.

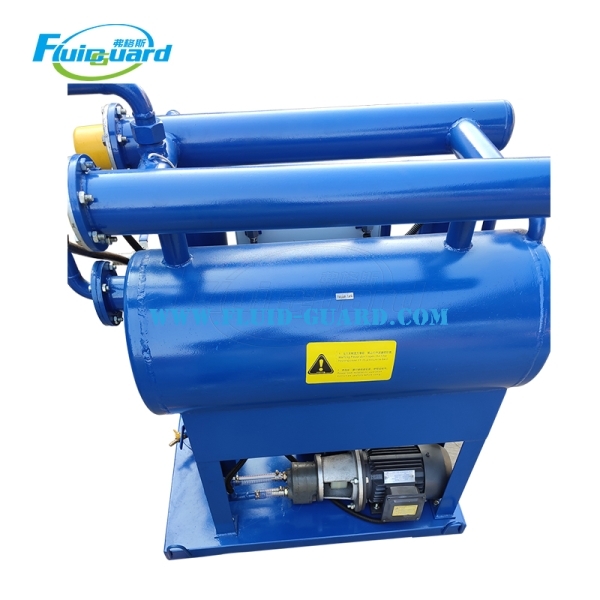

IMG_20211213_144315

Vacuum Oil Dehydration Heavy Fuel Oil Purifier Machine

Interested in this Products?

You can leave a message or contact us through the following ways!

Item	Unit	AOP-VS25 ~VS150
Flowrate	L/min	25 ~ 150
Working Pressure	Mpa	≤0.3
Rated Vaccum degree	Mpa	-0.06 to -0.099
Break down voltage	KV	≥ 55 ~65
Water Content	PPM	≤50
Air Content	%	≤0.1
Coarse filtration	um	100
Fine filtration	um	3 、5
Voltage	V	AC 380V three phase 、50Hz adjustable
Heat power	KW	6-15 ~ 60
Power	KW	7-17 ~ 65
Weight	Kg	195 ~ 700
Packing Dimensions	mm	6058821225mm etc.
