Flow: 32-150L/min
Application: hydraulic oil, lube oil, fuel oil
Function: Oil Filtration
Get QuotationProduct Details
1.Hydraulic lubrication system refueling and maintenance
2.The hydraulic,lubrication system bypasses filtration at work

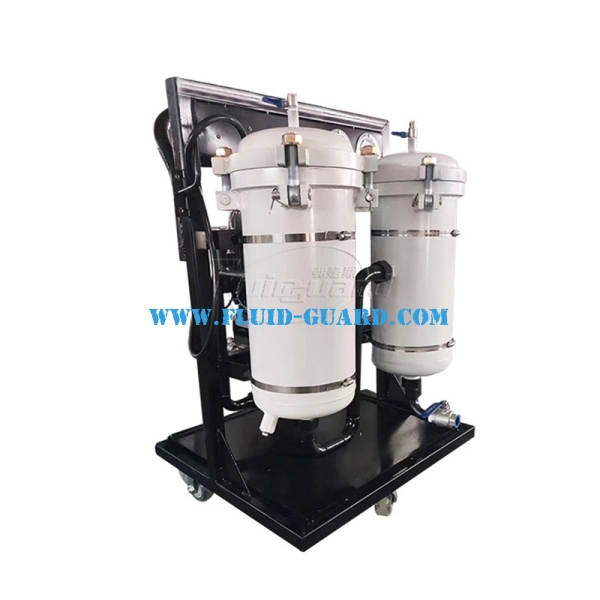

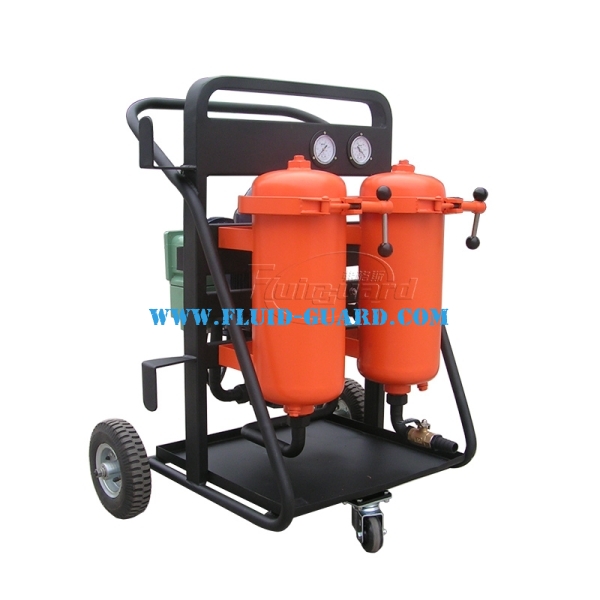

1.The oil filter includes a gear pump driven by a motor, which has the characteristics of low noise, strong corrosion resistance and stable operation. It is especially suitable for liquids with weak lubrication performance.
2.Adopt thermal relay protection to prevent motor damage caused by motor overload
3.The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter.
4.The fine filter can select different accuracy according to different needs of users to achieve the required
Model | AOP-A32 | AOP-A40 | AOP-A50 | AOP-A63 | AOP-A100 | AOP-A150 |
Flow rate(L/M) | 32 | 40 | 50 | 63 | 100 | 150 |
Pressure(Mpa) | 0.6 | |||||
Pressure drop(Mpa) | ≤0.01 | |||||
Coarse filter precision(um) | 100 | |||||
Fine filter precision(um) | 3、5、10、20、40 | |||||
DP | 0.2 | |||||
Temperature | 5-80°C | |||||
Viscosity(cSt) | 10-160 | |||||
Voltage | AC380V 3 phase 50HZ | |||||
Motor Power(kw) | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 3.0 |
Weight(kgs) | 64 | 75 | 80 | 85 | 100 | 135 |
