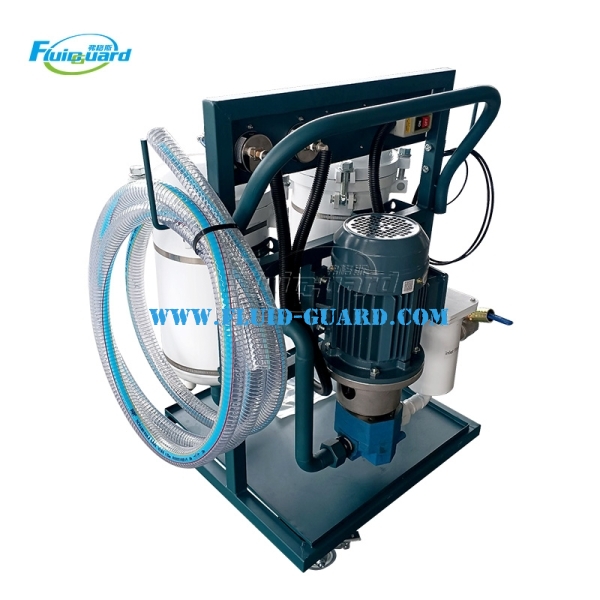

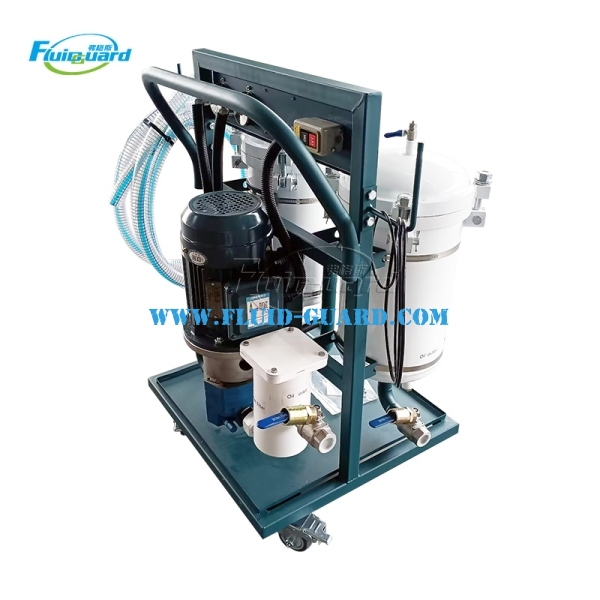

Hydraulic Oil Purification Machine Portable Hydraulic Oil Filtration Unit

Portable oil filter machine

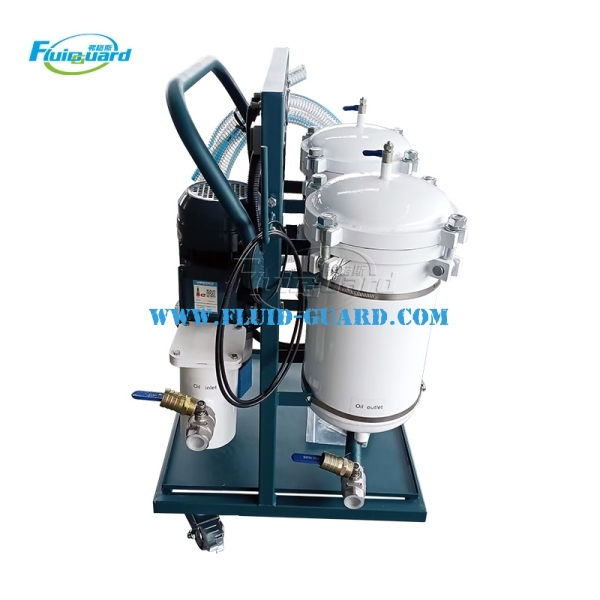

This filter cart is equipped with 2 filter housings and contains 3 filter stage: Coarse filter, 1st stage fine filter, 2nd stage fine filter, so it’s much more efficient compared to normal filter cart, which is equipped with only 1 filter housing and therefore contains only 2 filter stage.
The oil can be fast cleaned with this filter cart to a good precision level, say, 3 microns, so this filter cart is also called high precision filter cart.

It uses thermal relay protection to prevent motor damage which might be caused by motor overload.

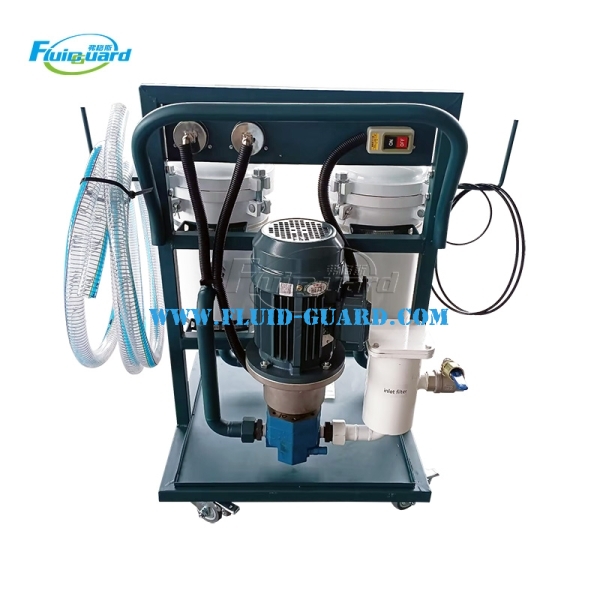

The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.

Different precision for the 2nd stage fine filter can be chosen according to different needs of users to achieve the required
results.

The oil filter housing adopts a quick-opening structure. No special tools are need to quickly open the upper cover and replace the filter elements.

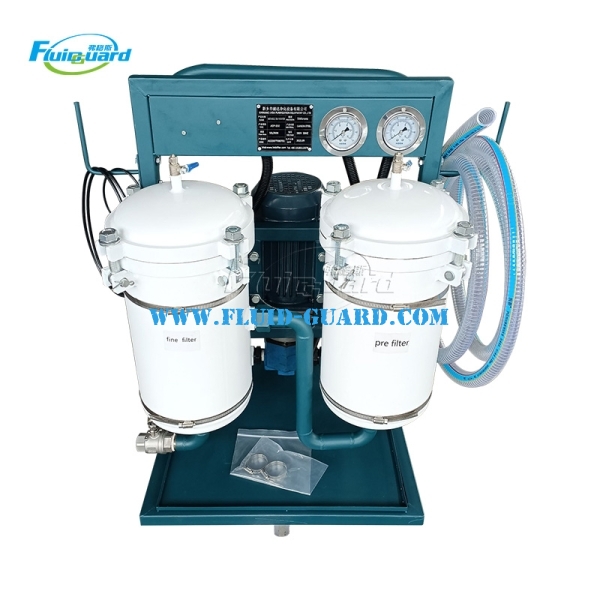

The panel is equipped with a pressure gauge, which continuously indicate the operating status of the system and the degree of pollution of the filter elements during work.

Product Name	Hydraulic Oil Purification Machine Portable Hydraulic Oil Filtration Unit
Flow rate(L/M)	25~150
Pressure(Mpa)	0.6
Pressure loss(Mpa)	≤0.02
Coarse filter precision(um)	100
1st Fine filter precision(um)	10、20、40
2nd Fine filter precision (um)	3、5、10
DP(Mpa)	0.2
Temperature(°C)	5-80
Viscosity(cSt)	10-160
Voltage	AC380V 3 phase 50HZ(Adjustable)
Motor Power(kw)	0.75~3
Weight(kgs)	78-160
