Product Details
Description

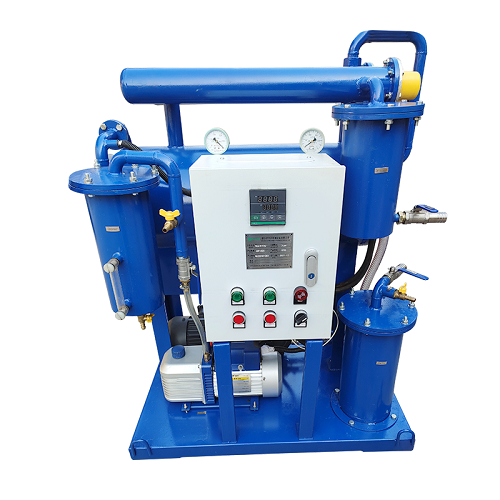

Our vacuum oil purifier can remove solid particles up to 3 micons, water contents up to 50ppm with physical filtration, without adding any chemicals, so will not affact the properties of the oil.
Suitable for almost all industrial oil, like: Steam turbine oil, cutting oil, hydraulic turbine oil, transmission oil, heat treating oil, hydraulic oil, gear oil, shafting oil, compressor oil, refrigerator oil, emulsified oil, lubricant oil etc.
Item | Unit | AOP-VS25 ~VS150 |
Flowrate | L/min | 25 ~ 150 |
Working Pressure | Mpa | ≤0.3 |
Rated Vaccum Pa | Mpa | -0.06 to -0.099 |
Break down voltage | KV | ≥ 55 ~65 |
Water Content | PPM | ≤50 |
Air Content | % | ≤0.1 |
Coarse filtration | um | 100 |
Fine filtration | um | 3 、5 |
Voltage | V | AC 380V three phase 、50Hz |
Heat power | KW | 6-15 ~ 60 |
Power | KW | 7-17 ~ 65 |
Weight | Kg | 195 ~ 700 |
Packing Dimensions | mm | 605*882*1225mm etc. |
