Poremet Multilayer Sintered Filter-Fluidguard

PRODUCTS

Current position：PRODUCTS > Filter Element > Metal Filter Element >

: Poremet Multilayer Sintered Filter

Features:

Metal Filter Element

MATERIALS : DIN 1.4404/AISI 316L, DIN 1.4539/AISI 904L

Absolute filter fineness : 5–120 microns
Get Quotation

Product Details

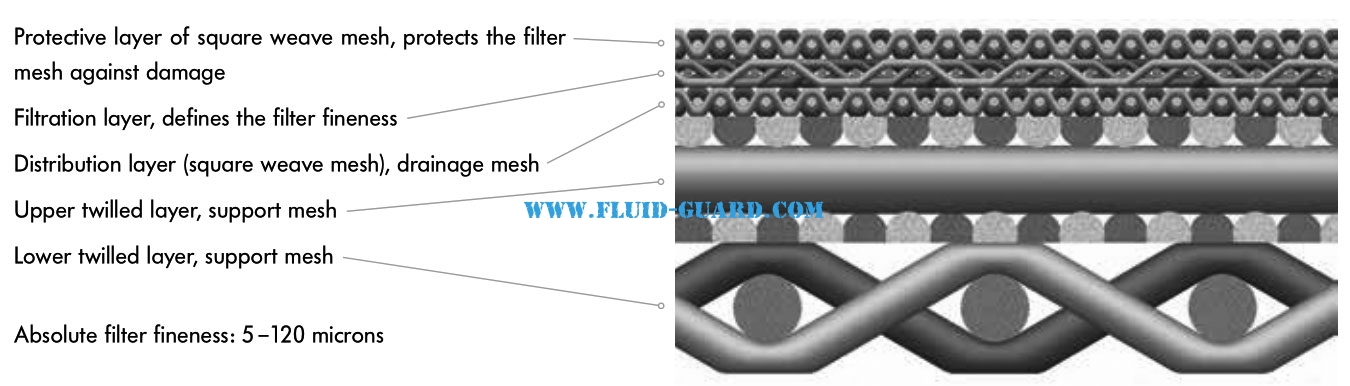

This leadlike filter medium consists of five ifferent wire cloth layers, put together so recisely that they achieve the optimum ombination of stability, filter fineness, flowrate and backwashing properties. POREMET s particularly suitable for fine and finest iltration applications at high pressures and arsh operating environments.

Poremet Multilayer Sintered Filter

Application Recommendations

Filtration of highly viscous liquids: Nutsche filters, centrifuges, fluidised beds, aeration of silos, applications in biotechnology.

Technical Data Sintered Mesh Laminates

Technical Data Sintered Mesh Laminates

Description		Geometric pore size μm	Thickness mm	Porosity %	Pressure Drop mbar	As mm2/cm	Rp N/cm	Weight kg/m2	specific flow-rate ratio Eu
Poremet	Poremet 2	10	1.7	30	6.80	5.1	1080	9.50	5146
	Poremet 5	14	1.7	30	5.00	5.1	1080	10.00	3784
	Poremet 10	21	1.7	30	3.10	5.1	1080	10.00	2346
	Poremet 15	20	1.7	30	2.05	5.1	1080	9.50	1551
	Poremet 20	25	1.7	30	1.91	5.1	1080	9.50	1446
	Poremet 30	35	1.7	30	1.69	5.1	1080	9.50	1279
	Poremet 40	50	1.7	30	1.54	5.1	1080	9.50	1166
	Poremet 50	60	1.7	30	1.43	5.1	1080	10.00	1082
	Poremet 60	75	1.7	30	1.34	5.1	1080	10.00	1014
	Poremet 75	90	1.7	30	0.56	5.1	1080	10.00	424

Poremet Multilayer Sintered Filter
