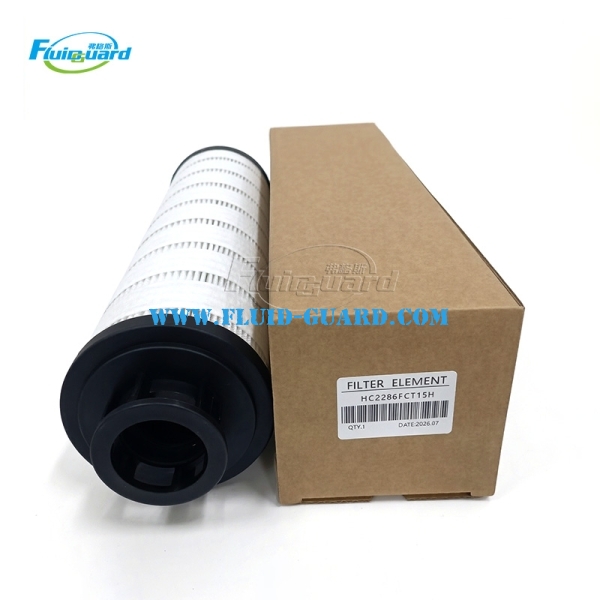

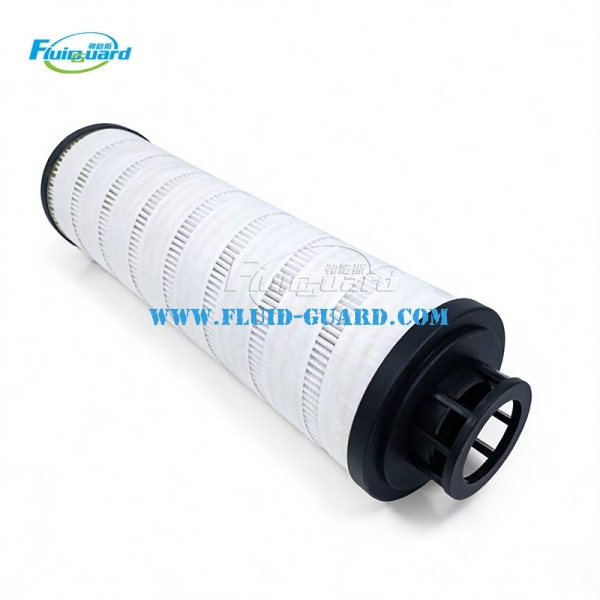

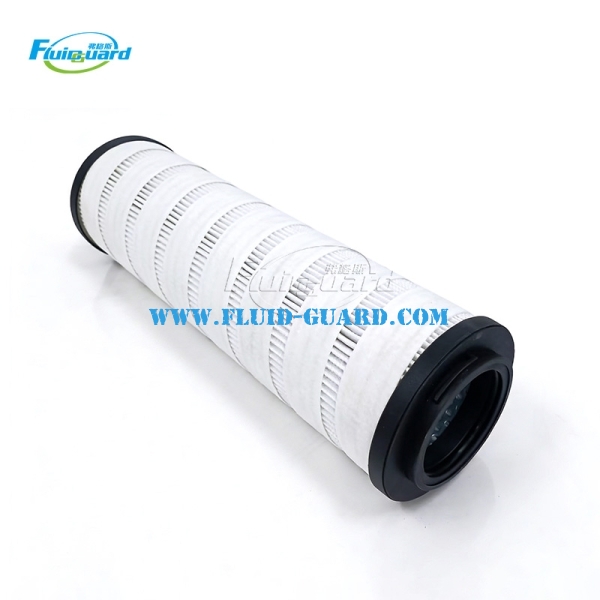

Factory Sullpy High Pressure Filter Element HC2286FCT15H Hydraulic Filter Cartridge

Hydraulic filter element HC2286FCT15H is a typical high-pressure hydraulic oil filter element (usually used for pressure line filtration), widely used in hydraulic systems of industrial hydraulic stations, construction machinery, and heavy equipment.

II. Main Functions

• Oil purification: Installed on the pressure line of the hydraulic system, it efficiently intercepts solid contaminants such as metal wear debris, seal fragments, and dust in the hydraulic oil.

• Precision component protection: Prevents contaminants from entering downstream hydraulic valves, servo valves, precision cylinders, etc., reducing the risk of component wear and sticking.

• System cleanliness maintenance: Helps the system maintain the target cleanliness level (such as NAS Class 6 or ISO 16/14/11, etc.).

III. Structure and Material Characteristics

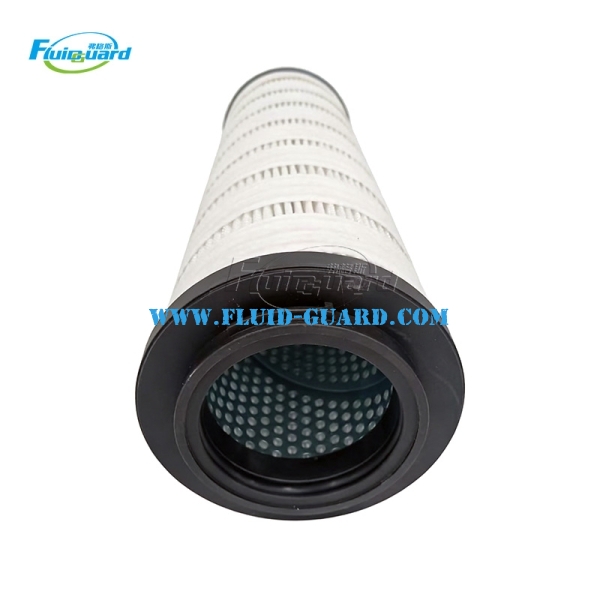

• High-strength core: Because it is a pressure line filter element, it usually has a high-strength stainless steel perforated core inside, capable of withstanding high internal and external pressure differentials (typically up to 210 bar or even higher) to prevent the filter media from collapsing.

• Filter media: Made of folded multi-layer composite glass fiber, featuring high filtration precision (15 μm absolute filtration), large contaminant holding capacity, and long service life.

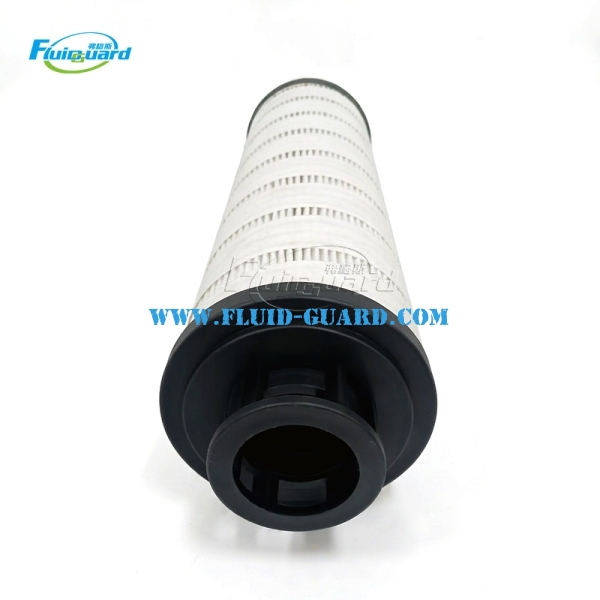

• End caps and seals: Metal end caps at both ends, equipped with oil-resistant and high-temperature-resistant nitrile rubber (NBR) or fluororubber (FKM) O-rings to ensure no internal leakage under high pressure.
