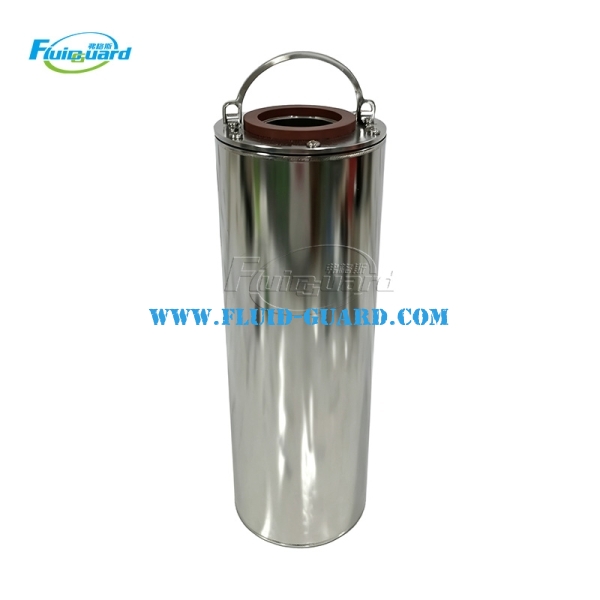

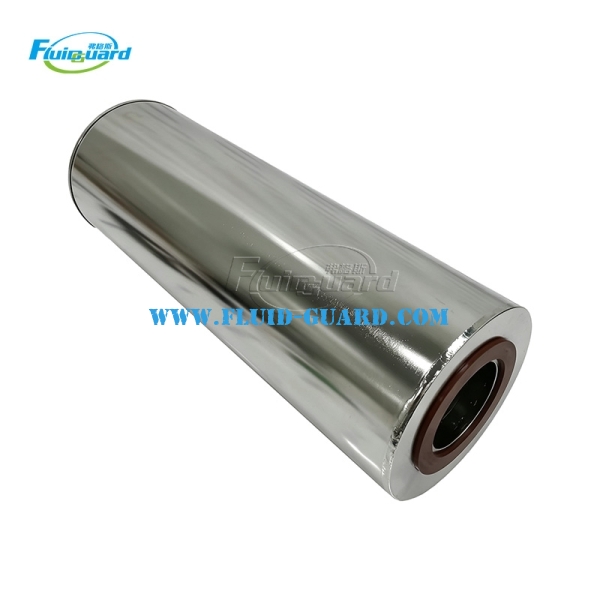

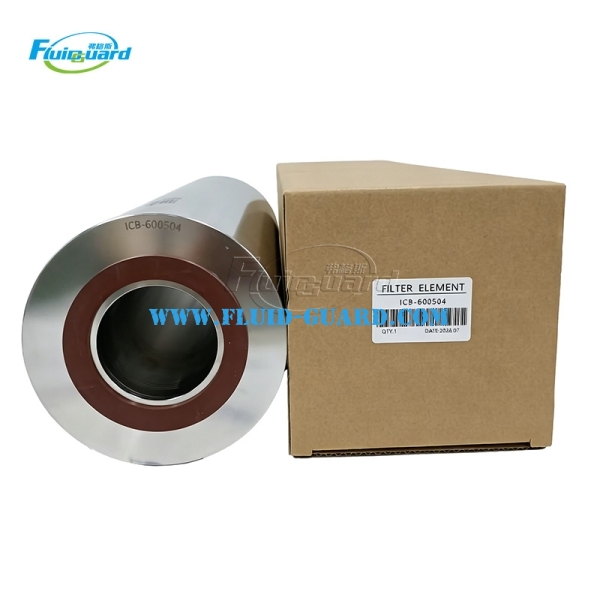

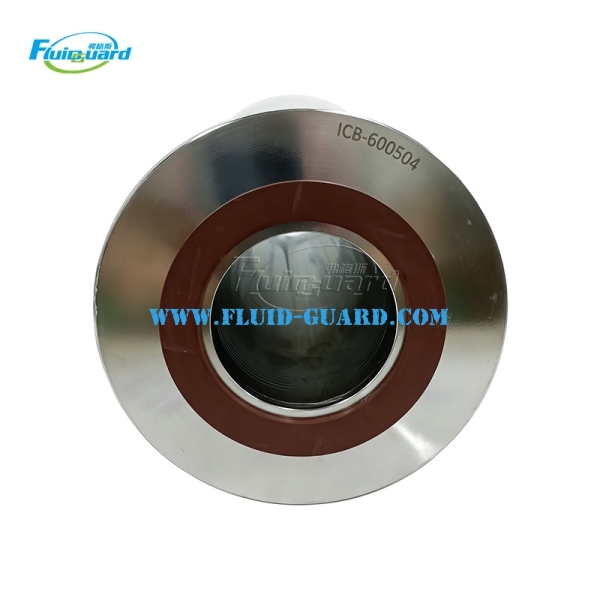

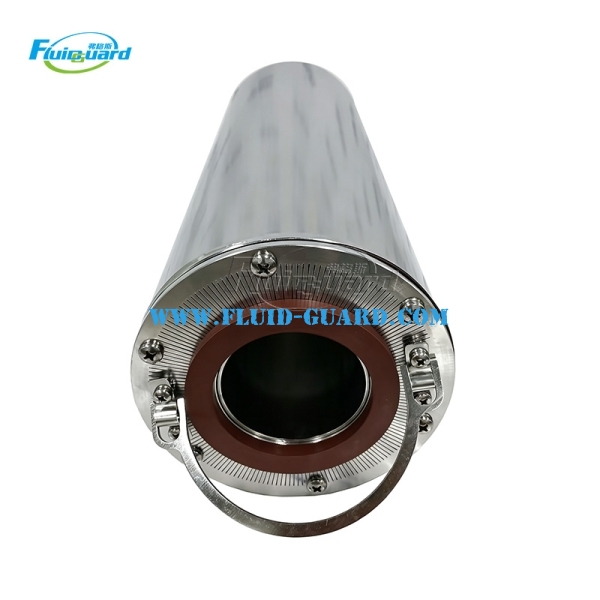

Ion Exchange Resin Acid Removal Filter Element ICB-600504 for Power Plant

The ICB-600504 is a high-performance ion exchange resin filter element designed primarily for the removal of acidic byproducts from phosphate ester fire-resistant fluids . It is a replacement element for systems and is widely used in Electro-Hydraulic Control (EHC) systems of steam turbines in power plants, as well as in other high-end industrial hydraulic applications such as metallurgy and chemical processing.

Key Features and Benefits:

• High-Efficiency Acid Removal: Utilizes high-precision spherical ion exchange resin to effectively adsorb acids (such as phosphoric acid) produced from oil degradation, rapidly reducing the total acid number (TAN) and preventing acid-catalyzed auto-degradation of the fluid . Its acid removal capacity is significantly higher than traditional materials like diatomaceous earth and activated alumina .

• No Secondary Pollution: Unlike traditional acid-removal materials, this element does not produce insoluble phosphates, soaps, or gels. This prevents servo valve sticking and other pollution-related issues .

• Improves Fluid Resistivity: Efficiently removes metal ions and polar contaminants, significantly improving the oil's electrical resistivity. This reduces the risk of electro-chemical corrosion and protects precision components like servo valves .

• High Stability and Reliability: Constructed to withstand high temperatures and oil immersion without swelling or decomposing. The resin particles are uniform and strong, preventing pulverization and shedding, which eliminates particle contamination risks .

• Direct Replacement: Designed with the same dimensions as standard diatomaceous earth filter elements, allowing for a direct "drop-in" upgrade in existing filtration systems without the need for modification .

• Technical Specifications (Reference):

  Parameter	Detail
  Type	Ion Exchange Resin (Acid Removal)
  Function	Acid removal, metal ion removal, resistivity improvement
  Length	Approx. 18.00 in (45.72 cm)
  Outer Diameter	Approx. 6.21 in (15.78 cm)
  Inner Diameter	Approx. 2.60 in (6.60 cm)
  Dry Weight	Approx. 13.0 lbs (5.9 kg)
  Application	Phosphate ester fire-resistant fluids in turbine EHC systems
