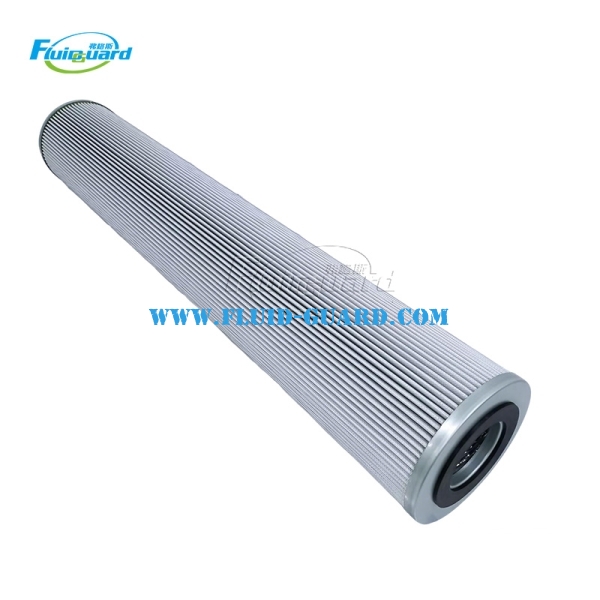

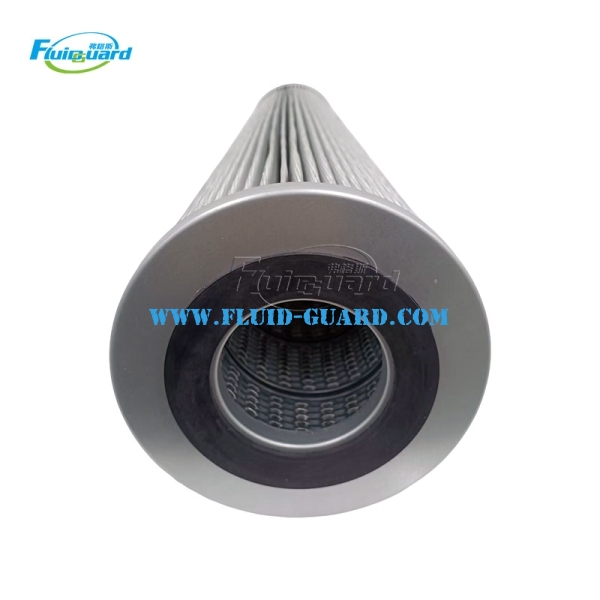

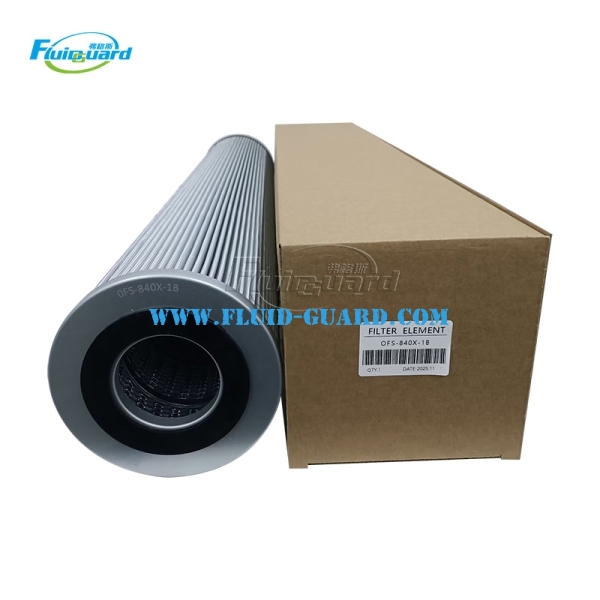

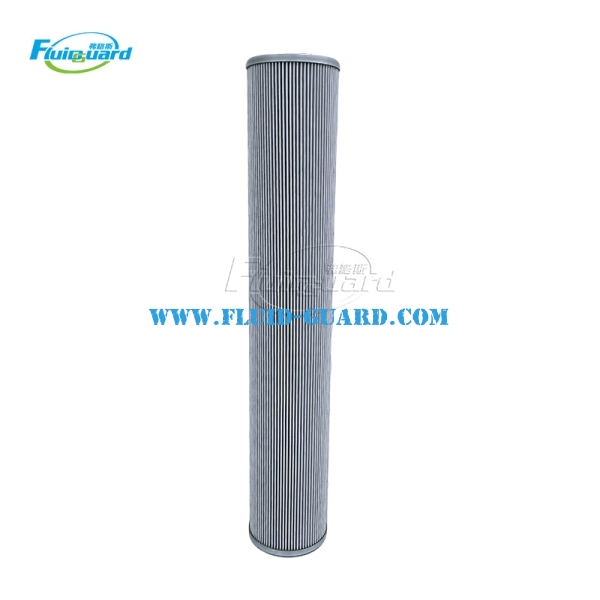

Replacement Hydraulic Lubricating Oil Filter Element OFS-840X-1B

Filtration Point high quality Beta 1000 Microglass filter elements are constructed with dual layers of

optimized Microglass and mesh support to withstand challenging filtration applications and exacting

requirements, making our replacement for OFS-840X-1B a true value. The cost savings compared to

expensive OEM brands just adds to the value. Microglass is known to have a longer life due to its lower

clean differential pressure and higher dirt-holding capacity. Our filter media is backed by ISO16889

multi-pass and Dynamic Filter Efficiency (DFE) testing.

This filter element can be used for filtering hydraulic fluid, water glycols, diesel, machining fluids, lubricating

oil, coolants, gasoline, process fluids, turbine and compressor lube oils, synthetic lubricants, and many more

chemicals.

Specifications

• Part Number: OFS-840X-1B

•

• Efficiency: Beta 2[c] >= 1000 (ISO 16889 DFE)

•

• Maximum Temperature (F): 250

•

• Adhesive: Epoxy

•

• By-Pass: None

•

• End Cap: Corrosion Resistant CS/AL

•

• Flow Direction: Out/In

•

• Media Type: Microglass supported both sides

•

• Recommended Change Out (PSID): 25

•

• O.D. (inches): 6

•

• I.D. (inches): 2.63

•

• O.A.L (inches): 34

•

• Seal Material Type: Buna Flat

•

• Quantity Per Carton: 1

•

• Maximum Pressure (PSID): 150

•

• Filter Type: Hydraulic Series

•

•
