Factory Supply Box-Type Microfilter for Aquaculture and Fishery Application

The Box-Type Microfilter is a compact, skid-mounted mechanical filtration system designed for continuous liquid-solid separation. It is particularly well-suited for aquaculture and fishery applications, specifically for circulating and purifying water in large ponds.

Key Specifications & Dimensions

• Model Type: Box-type microfilter (skid-mounted).

• Flow Rate: 30 t/h (tons per hour) or 28 m³/h (cubic meters per hour).

• Inlet/Outlet Size: DN100 flanged connections.

• External Dimensions: 100 x 95 x 95 cm (L x W x H).

• Weight: 75 kg.

Design and Working Principle

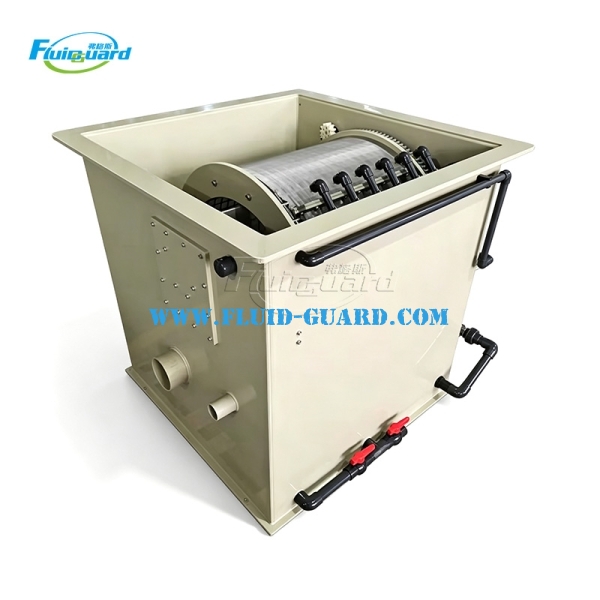

• Filtration Mechanism: The unit features a rotating drum equipped with a fine micro-screen mesh (visible inside the open tank). Water enters the tank and passes through the rotating screen, trapping suspended solids and sludge on the outside.

• Automatic Cleaning: As the drum rotates, a series of spray nozzles (connected to the black pipe header) wash the captured debris off the screen and into a collection trough for discharge.

• Integrated Pump: The system includes a mounted stainless steel pump and motor, providing the necessary pressure for filtration and backwashing.

• Control Panel: A weather-resistant electrical control box is mounted on the side for automated operation.

• Drainage: Features red-handled ball valves at the bottom for manual sludge discharge and maintenance.

Application Scenario

• Use Case: Fishery / Aquaculture.

• Project Details: Designed to re-circulate water in a 1500 m³ pond.

• Target: Effectively filtering pond sludge and suspended organic matter to maintain water quality for fish farming.

Summary
This Box-Type Microfilter is a highly efficient, compact solution for aquaculture water treatment. Its 30 t/h capacity and DN100 ports make it ideal for medium-sized pond recirculation systems, effectively removing sludge while maintaining a small footprint.
