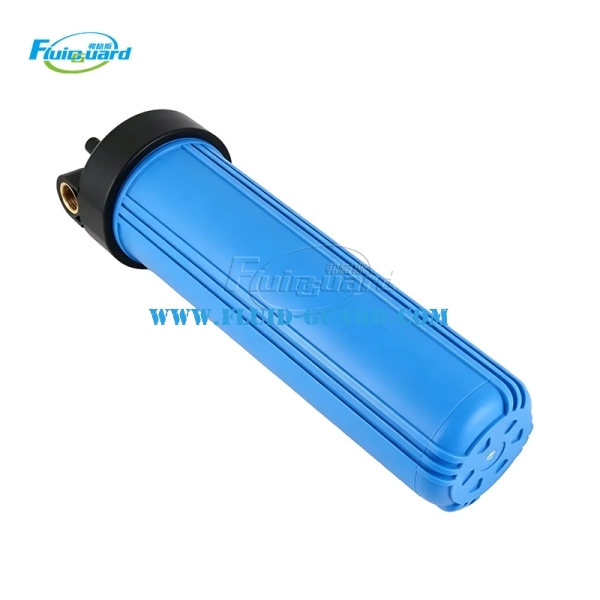

Single Cartridge Filter Housing 20" Big blue Water Filter Housing

20 Inch Big Blue 5 Micron Sediment Whole House Water Filter is ideal for high-flow and heavy sediment applications. They are usually placed in the main water line entering the house including, but not limited to residential drinking water filtration, food service, and irrigation. This whole house water filter even extends the life of washing machines, water heaters, and other household appliances.

• Model: PH20 – Blue

• Flow: 0-2.2 M3/H

• In/out pipe: 3/4″F

• Body and lid material: Reinforced Polypropylene (blue)

• O-ring material: Buna-N

• Max pressure: 8.6bar (125PSI)

• Max temperature: 0-60°C

• Overall dimensions: Height 571mm, diameter D92mm

• Mounting type: installed directly on the pipe

• Supplied including PP housing ( not include bracket installation + spanner)

• Application: Contains 20 inch PP fine filter core, charcoal, ion resin exchange
