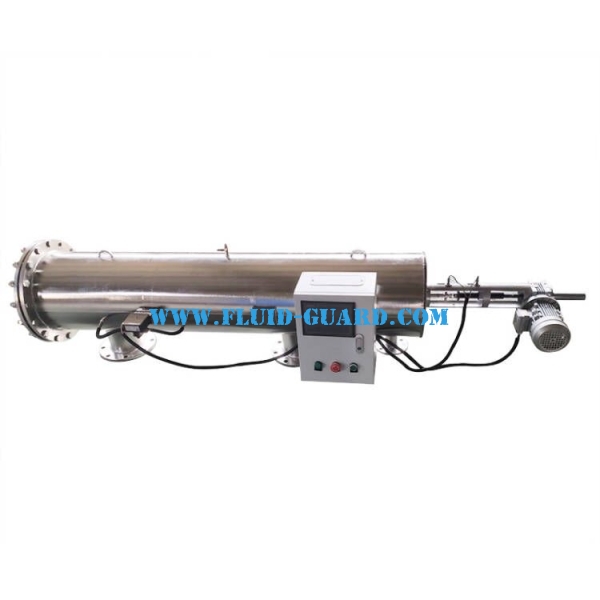

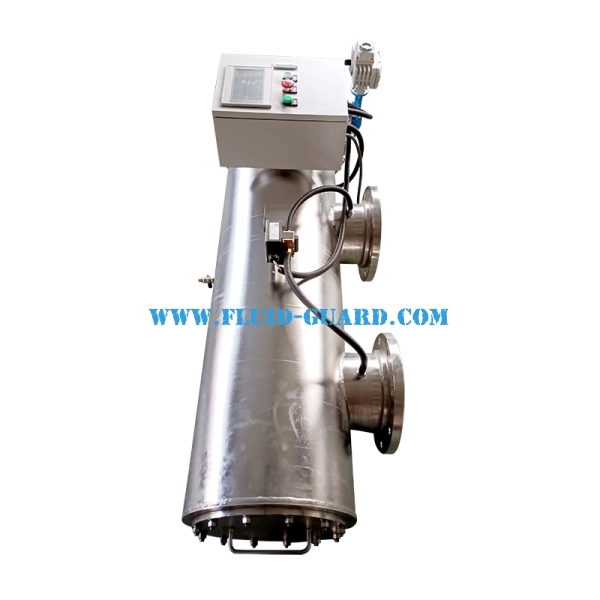

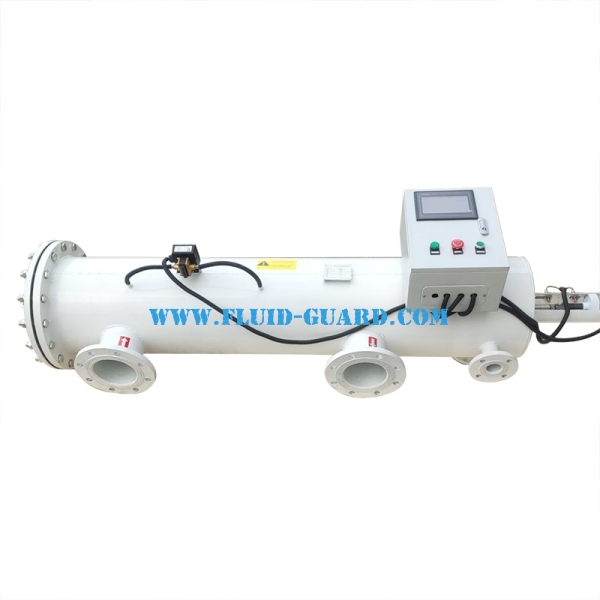

Suction Type Horizontal Self Cleaning Filter Complete Automatic Without Human Operation

Description

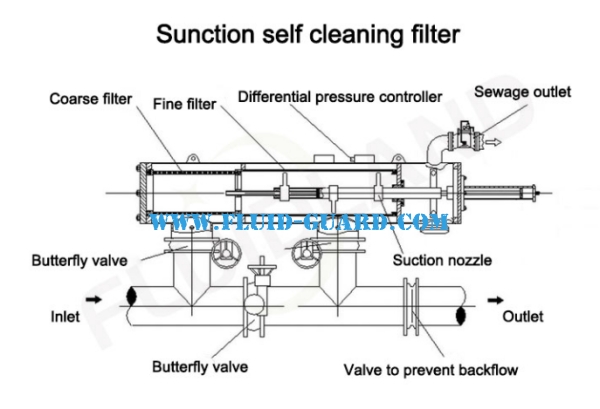

The water flows in from the inlet of the filter, first passes through the coarse filter to filter out the larger particles of impurities, and then enters the fine filter. The impurity particles in the water continuously accumulate on the inner side of the fine filter, on the inner and outer sides of the fine filter. A pressure difference is formed. When the pressure difference reaches a predetermined value (0.05MPa), the pressure difference switch transmits a signal to the control panel, and the control panel starts the motor to drive the suction scanner to rotate and suck the dirt and impurities on the filter screen. At the same time, the drain valve is opened, and the dirt is discharged from the drain valve.
