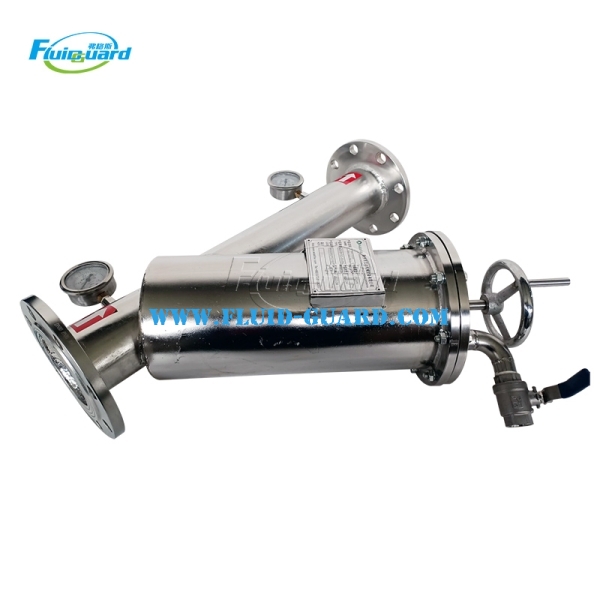

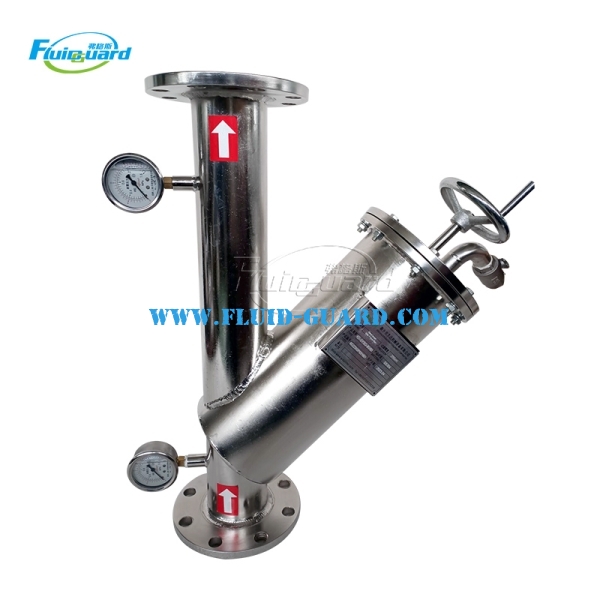

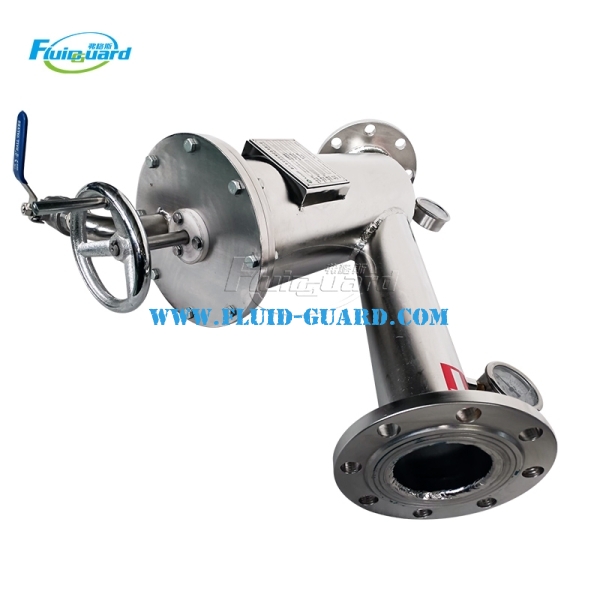

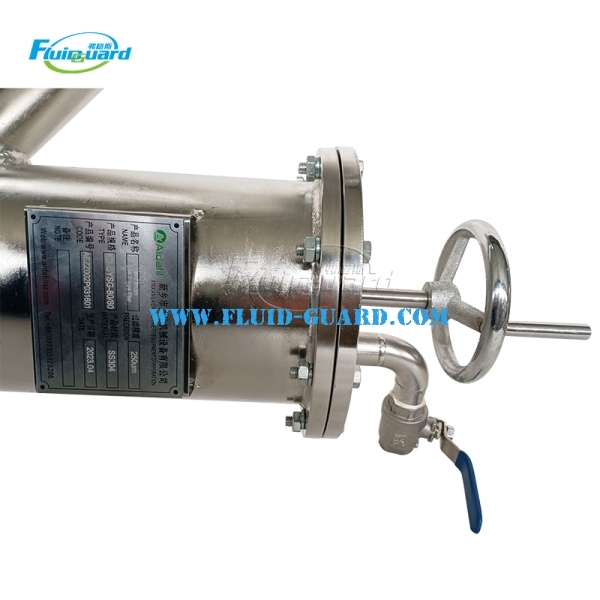

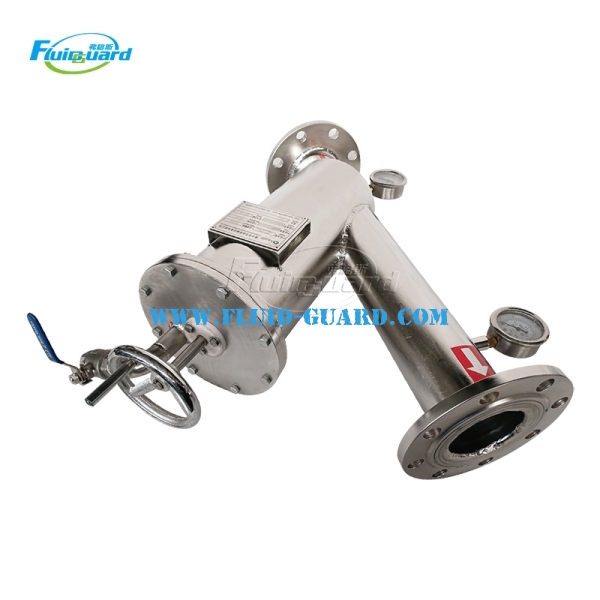

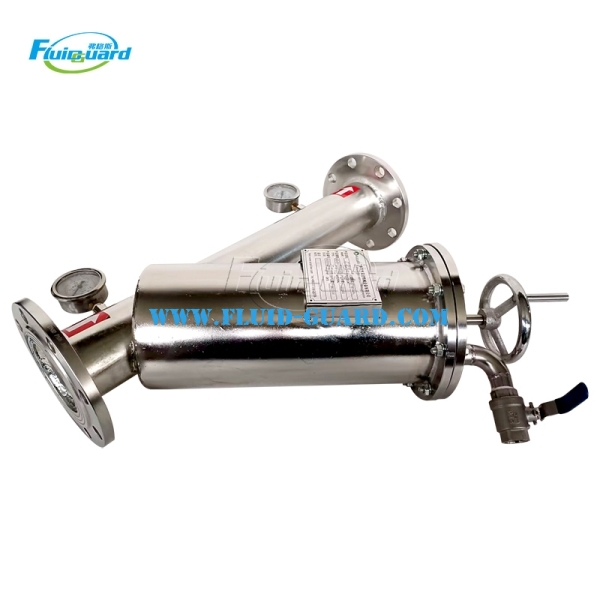

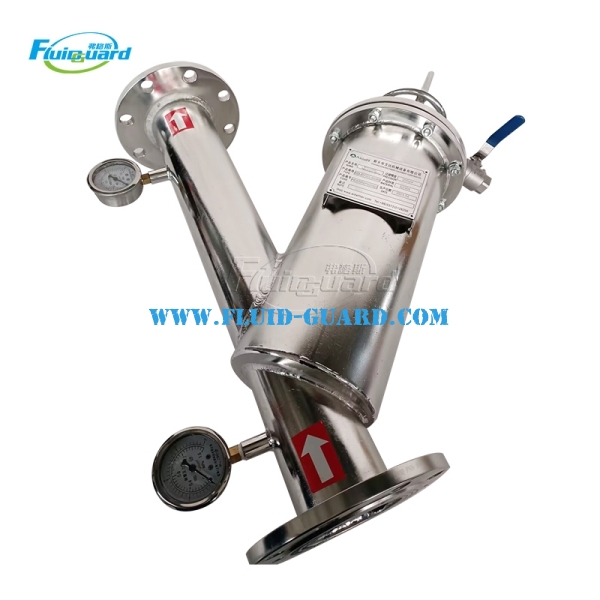

Factory Sales Y-Type filter for Water Treatment Purification

The automatic self-cleaning Y type filter is aimed at intercepting most impurities on the strainer directly. It could reduce turbidity of the waste water by removing the suspended and particulate matters, thus offering water of higher quality.

The final aim is to prevent filtration system from dirt, bacterial algae, rust and ensure smooth operation of mechanical equipment.

Rated flow	20-3000m³/h
Working pressure(min)	0.2MPa(g) (customizable)
Working pressure	≤1.6MPa(g)
Inlet&outlet	DN32
Working temperature	≤80℃ (customizable)
Precision	100-3000micron
Motor power	0.37-1.1kw
Self-cleaning flow	＜1% of total flow
Self-cleaning duration	15s (adjustable)
Pressure differentials	0.5Kg/cm² (adjustable)

Features:

1.Fully&continuously automatic filtration, which could directly reduce labour costs and meet the requirement of automatic operation.

2.No occurring of disposable filter materials, which could save cost of consumables and environment treatment.

3.Negligible pressure differentials&steady rated flow, which could be beneficial to a stable technique and less energy consumption of pipeline.

4.Totally enclosed filtration, to avoid leakage of dangerous materials.

5.Avoid the loss of high-value materials, by the recovery from effluent with impurities in heavy concentrations.

6.Multiple combinations of modules and powerful automation modes are optional, which could meet different filtering demands.
