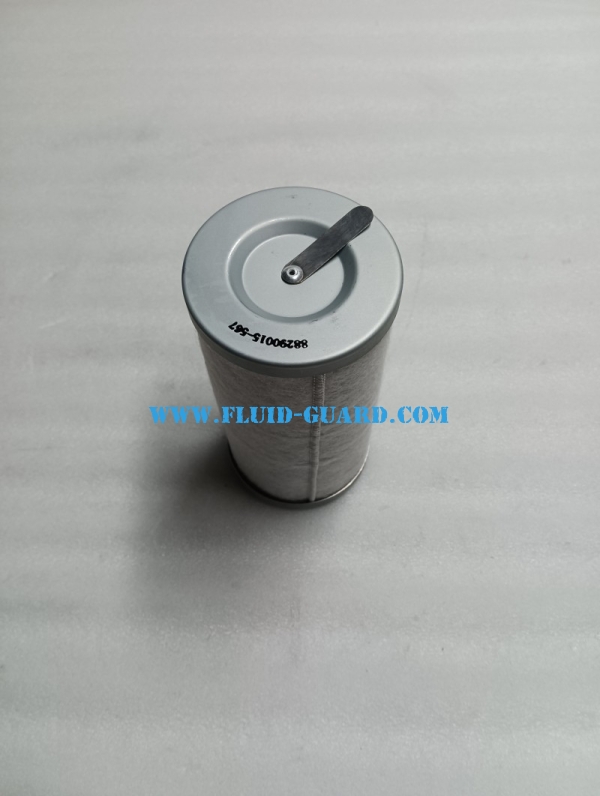

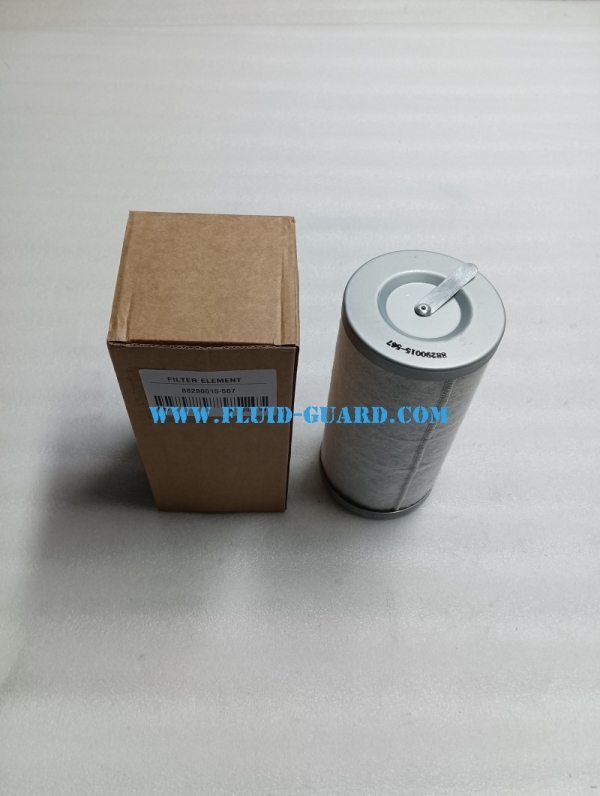

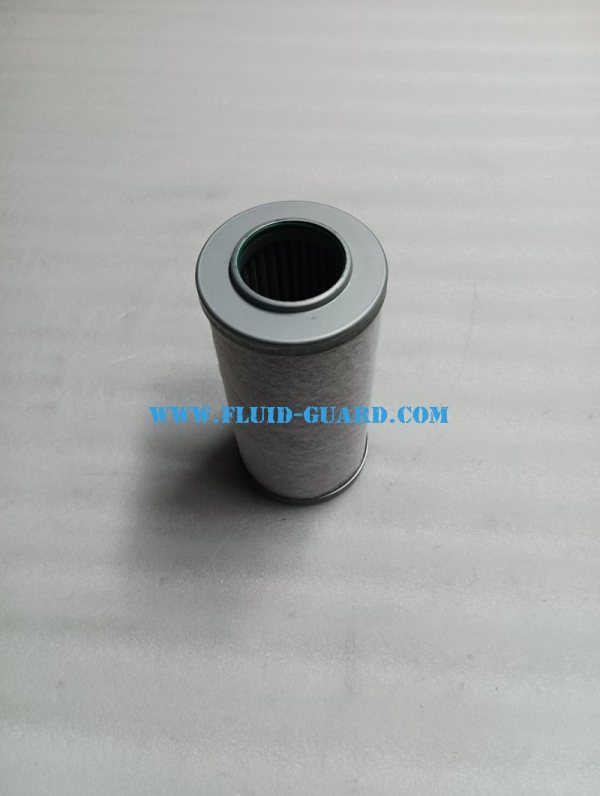

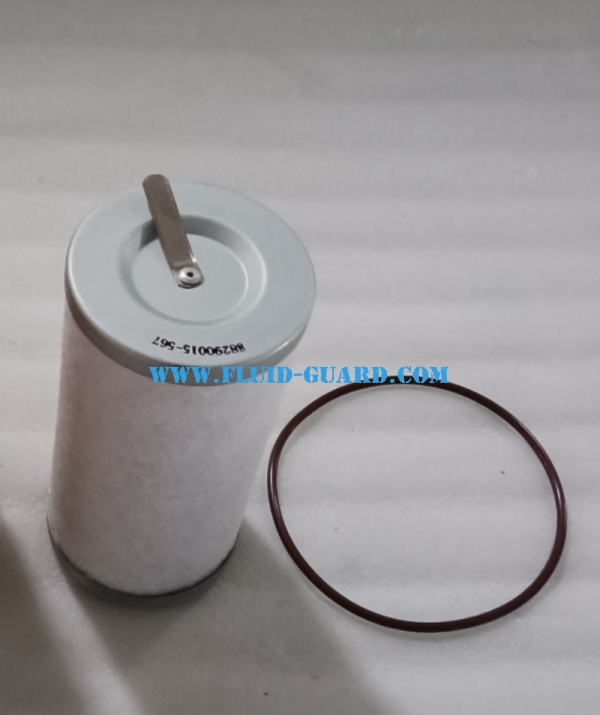

88290015-567 Air Oil Separator Filter for Sullair 15kW 20HP Screw Air Compressor

Dimensions: Outer diameter 105mm, overall height 213mm

Filter media: HV/Lydall ultra-fine multi-layer glass fiber (USA)

Filtration accuracy: 0.1μm, separation efficiency 99.99%

Outlet oil content: ≤3ppm (clean, no oil spray)

Standard service life: 4000–5600 operating hours

Initial differential pressure: ≤0.2bar, replacement recommended immediately if differential pressure exceeds 0.6bar

Net weight: Approx. 0.74kg, includes top oil return guide plate

Compatible with Sullair 20HP (15kW) small mobile/stationary screw air compressors, compatible with the matching maintenance three-filter kit; Universal replacement model: P-CE03-555-04.
