Top Loader Pleated Filter Cartridge CPB 154 1070 909AF WL Nordic Air Dust Collector Filter

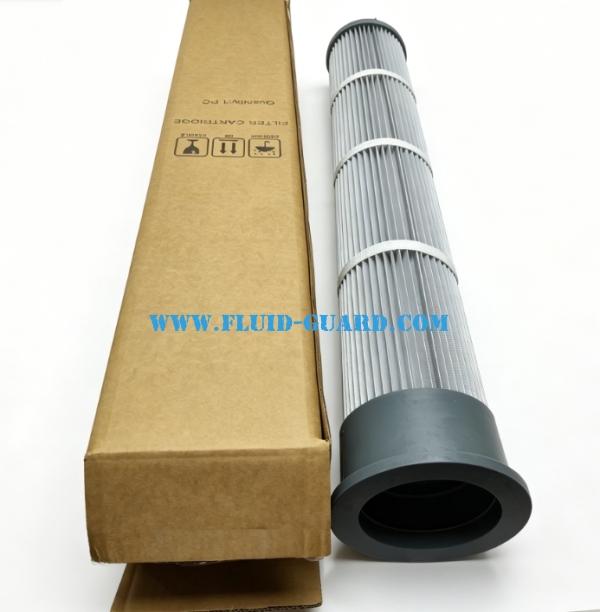

CPB 154 1070 909AF WL Top Loader Pleated Filter Cartridge

This filter element is original Nordic Air Hengst Filtration replacement dust cartridge, model CPB 154 1070 909AF WL, spare code 92100000350, widely used in industrial dust removal systems.

Main Structure & Material

1. Top & Bottom Cap: Soft Polyurethane EC1935, good sealing performance

2. Inner Support Cage: Polypropylene plastic cage, anti-corrosion

3. Filter Media: 909ANFC antistatic polyester with PTFE coating, total filter area 1.80 ㎡, 42 pleats

4. Outer Reinforcement: 3pcs ultrasonic welded polyester bands, stable pleat shape

Performance & Certifications

• Max operating temperature: 70℃

• Equipped with 300mm grounding cable

• ATEX compliant for explosive dust working environment

• Open & closed dual-purpose top loader design, easy for installation and replacement

Application

Suitable for industrial dust collectors, dust extraction units, woodworking, metal grinding, pharmaceutical, chemical and other dust collection working conditions.
