Product Details

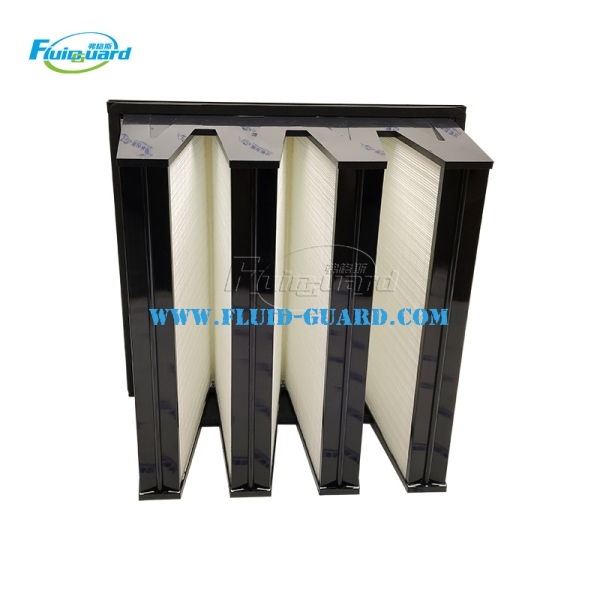

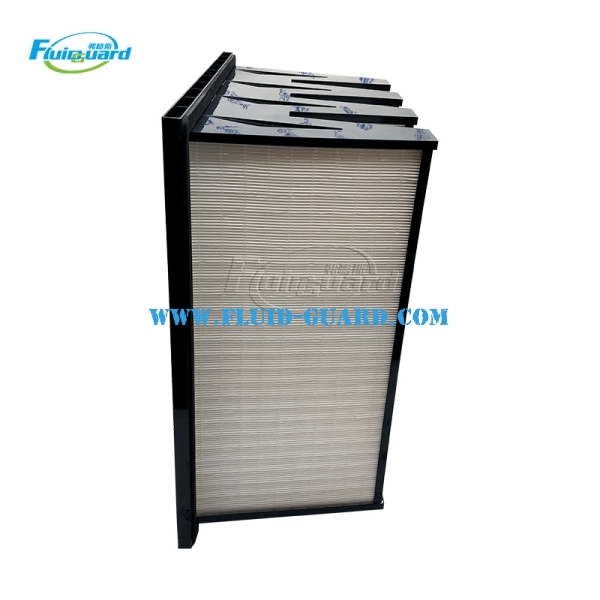

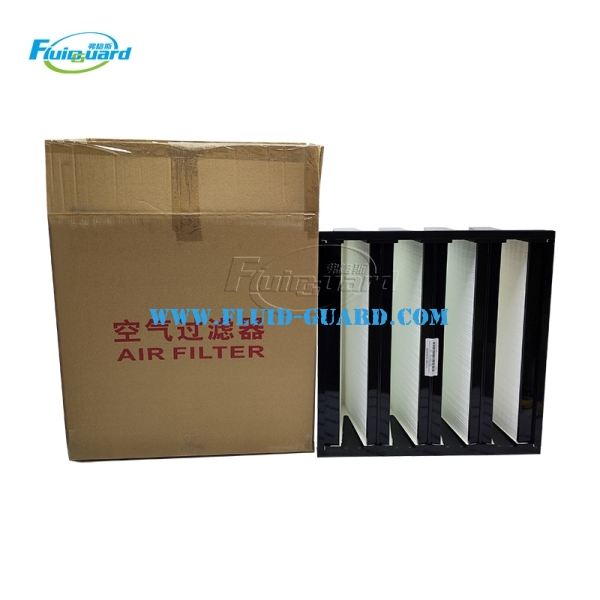

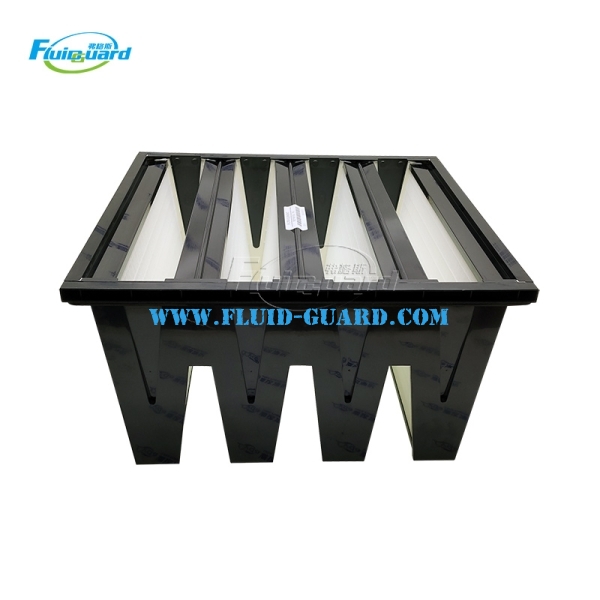

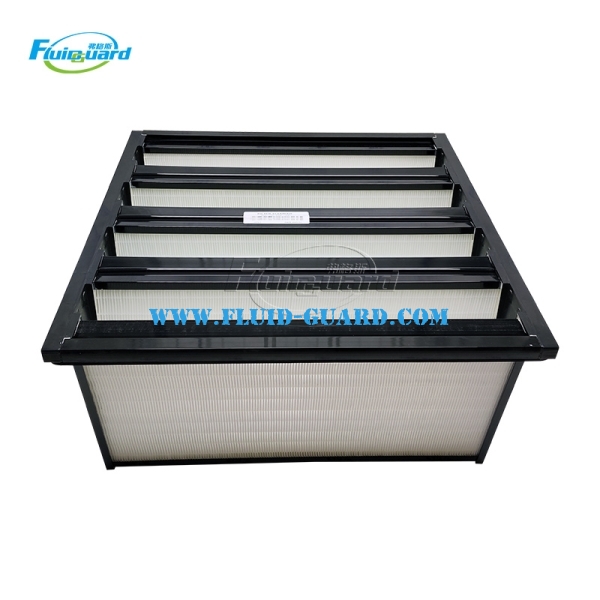

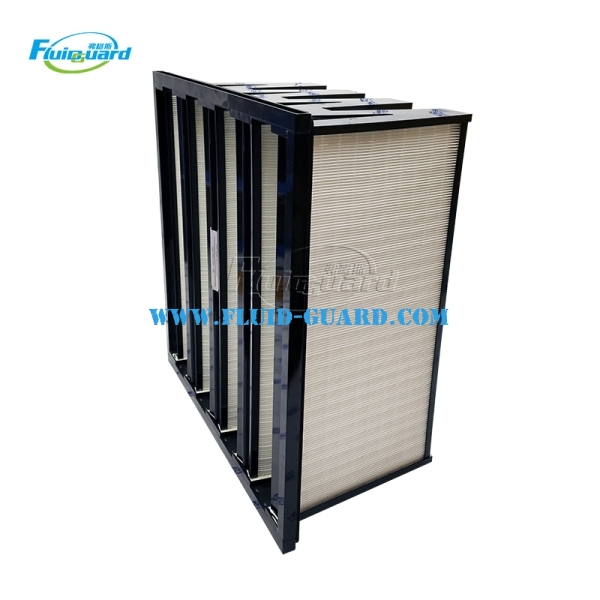

Standard compact filters are used for the filtration of coarse and fine dust in air conditioning and ventilation systems,
as pre-filter for HEPA filters, as well as in industrial applications.
Compact filters are available in basic depths of 292mm and 400mm.
On request we supply all compact filters in the filterclasses M6 - F9 in "3V" or "4V" design, as well as in the subsizes 5/6 and 1/2.
All filters are available with glass fibre media or alternatively polypropylene media, which are considerably more robust, easier to handle and moisture resistant.
| Article | Filter Class | Frame material | Gasket (yes/no) | Width (mm) | Height (mm) | Depth (mm) | Surface Area (m²) | Airflow (m³/h) | Pressure Drop (Pa) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| V Filter | F9 | ABS | NO | 592 | 592 | 292 | 20,2 | 3400 | 90 | ||
| V Filter | F9 | ABS | NO | 592 | 287 | 292 | 20,2 | 2250 | 140 |
