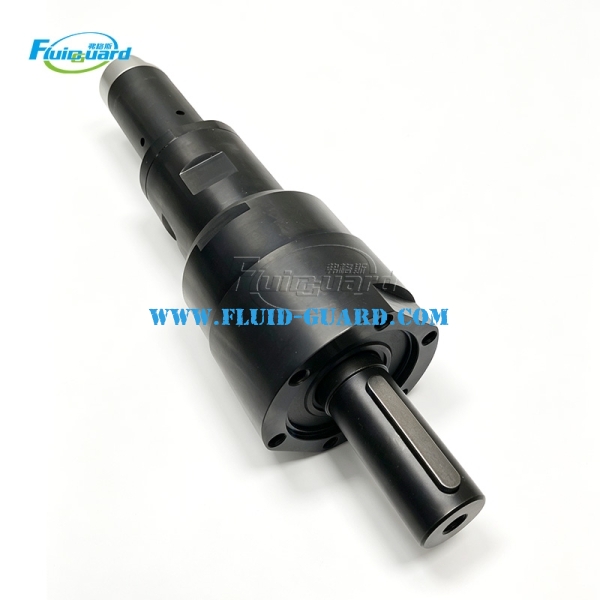

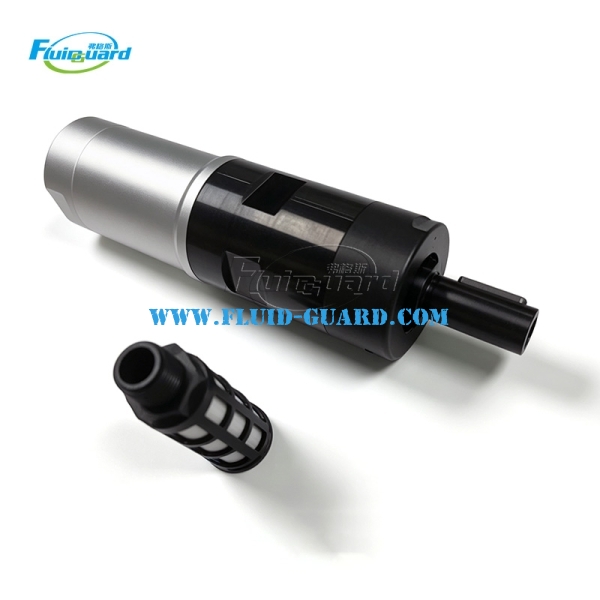

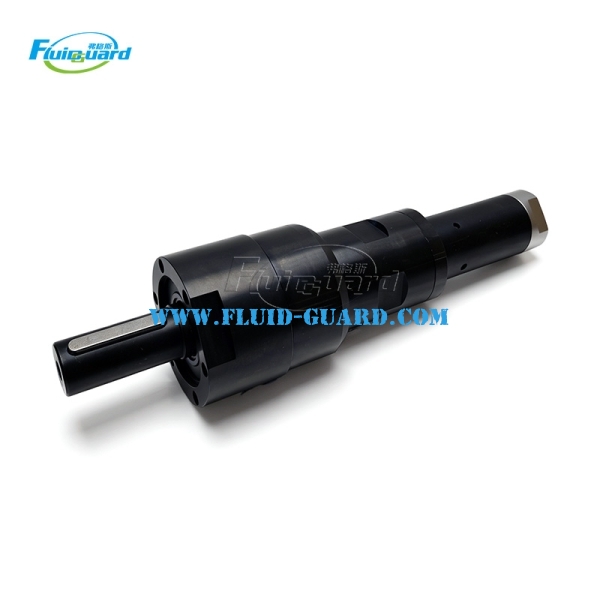

LZB33-L-AR0001-11 Vane Air Motor for Industrial Use

The LZB33-L-AR0001-11 is a compact, heavy-duty vane-type pneumatic motor . It serves as a reliable power source for industrial applications where electric motors are impractical or unsafe.

Key Specifications

• Model: LZB33-L-AR0001-11

• Part Number: 8411032223

• Power Source: Compressed air (pneumatic)

• Design: Vane motor with a straight keyed shaft

• Housing: Black, corrosion-resistant cylindrical body

Design Features

• Vane Motor Mechanism: Uses compressed air to drive internal vanes, converting pneumatic energy into rotational mechanical power.

• Keyed Output Shaft: Equipped with a keyway and key slot, ensuring secure torque transmission to pumps, gearboxes, or other driven equipment.

• Compact Cylindrical Body: The housing features a durable black finish and is designed for tight installation spaces.

• Internal Bearings: Supported by sealed bearings for smooth, long-lasting operation.

Applications

• Driving pumps, mixers, and agitators

• Powering conveyor systems and winches

• Rotating equipment in hazardous or explosive environments

Summary
The LZB33-L-AR0001-11 is a compact, reliable vane air motor designed for demanding industrial applications. Its keyed shaft and robust construction make it suitable for a wide range of power transmission tasks where pneumatic operation is preferred.
