Hot Sale Air Compressor Spare Parts Coupling

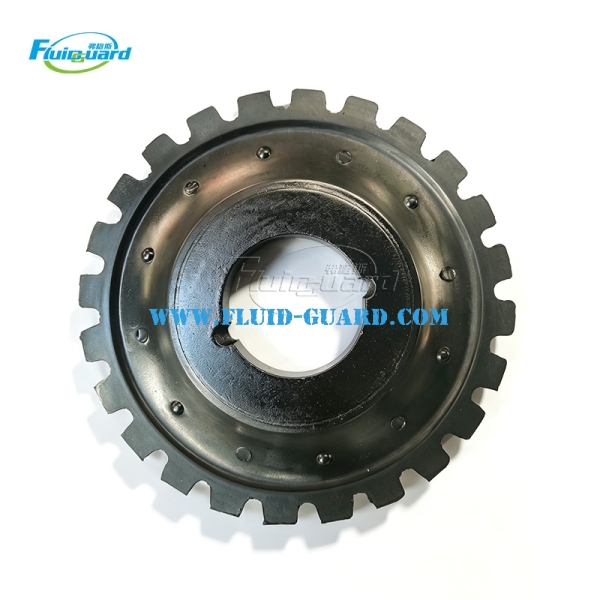

This product is a heavy-duty mechanical coupling, specifically designed as a replacement or original equipment part for air compressors. It serves as a critical connection between the motor and the compressor, transmitting rotational torque while accommodating slight misalignments.

Key Design Features

• Outer Sprocket / Gear Profile: The outer circumference features a series of evenly spaced rectangular teeth or sprockets. This design is characteristic of a jaw-type coupling or a chain/sprocket coupling, allowing for a flexible and durable mechanical connection.

• Inner Hub: The central bore features a keyway (visible on the inner ring), ensuring a secure, non-slip fit onto the compressor or motor drive shaft.

• Fasteners: The inner hub is secured to the outer sprocket assembly using six hex-head bolts arranged in a circular pattern, allowing for easy assembly and maintenance.

• Material and Finish: Constructed from a durable metal (likely cast iron or steel) with a black, protective industrial coating to resist corrosion and wear in harsh operating environments.

Application and Function

• Primary Use: Transmitting power from an electric motor or engine to the air compressor's rotary screw or piston mechanism.

• Vibration Damping: The coupling design helps absorb shock loads and vibration, reducing wear on the compressor's bearings and extending the life of the drive system.

Summary
This coupling is a robust, easy-to-install air compressor component designed for reliable torque transmission. Its toothed outer profile and bolted inner hub provide a secure, durable connection essential for maintaining the efficiency and longevity of industrial air compressor systems.
