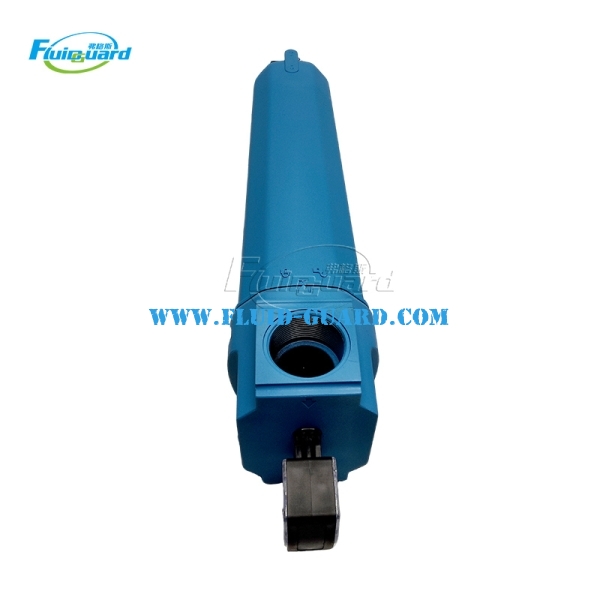

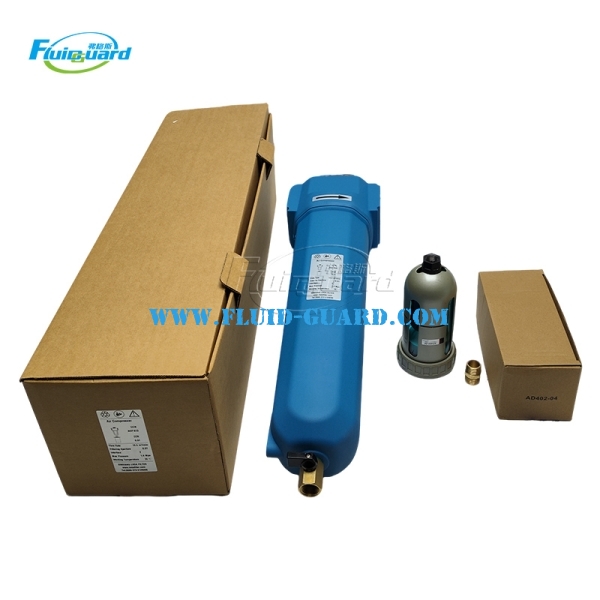

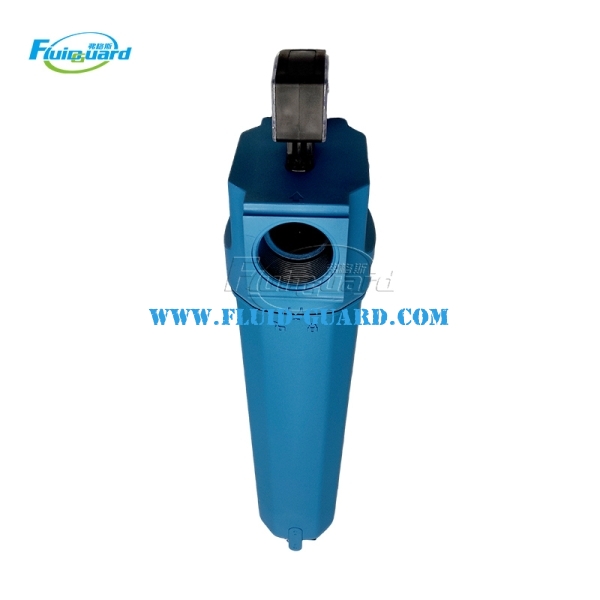

13.5NM3/Min Air Compressor Filter Housing AOP-013 Compressed Air Filter

Airborne particles, water vapour, microbes, and chemical gases enter compressors. After compression has taken place these contaminants become concentrated and more destructive. Compressed air quality is essential to all modern production facilities. Compressed air filters, often referred to as line filters, are used to remove these contaminates from compressed air. Clean and dry air protects the compressed air system, reduces maintenance costs and increases finished product quality.

Working conditions and Technical Data

• Capacity:1.2~25m³/min
• Max. pressure:16bar
• Max.working temperature:80℃
• Differential pressure:0.07bar
•Filter element service:6000hours
•Air filter with differential pressure indicator and sight glass
• Filter housing internal with anti-corrosion treatment.

Features:

* Filter housing internal with anti-corrosion treatment.

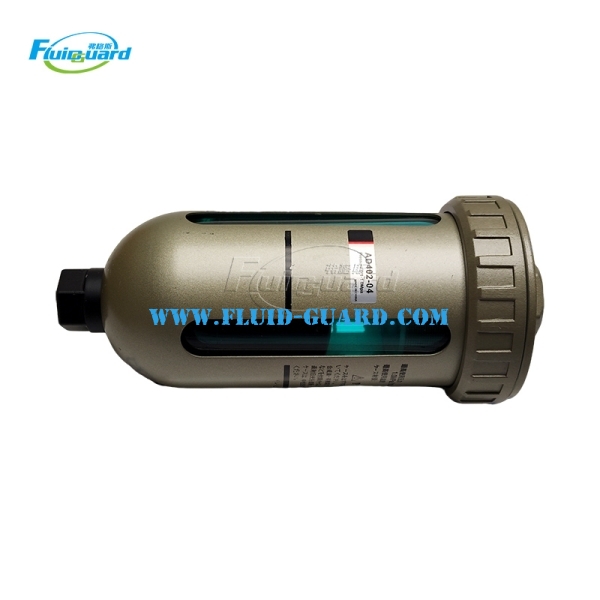

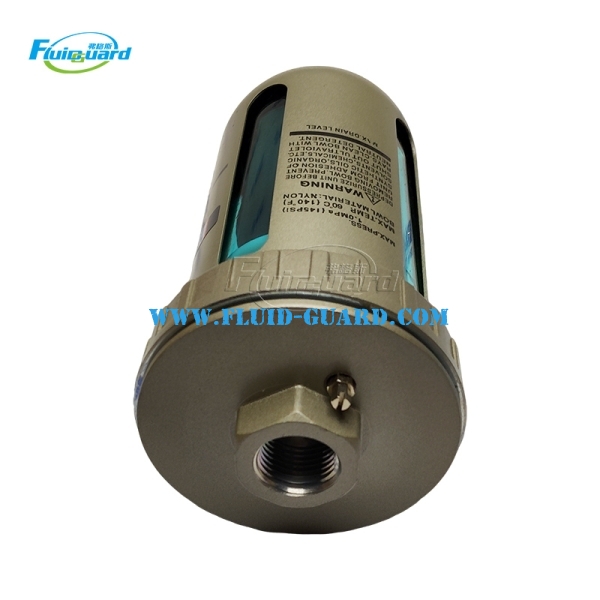

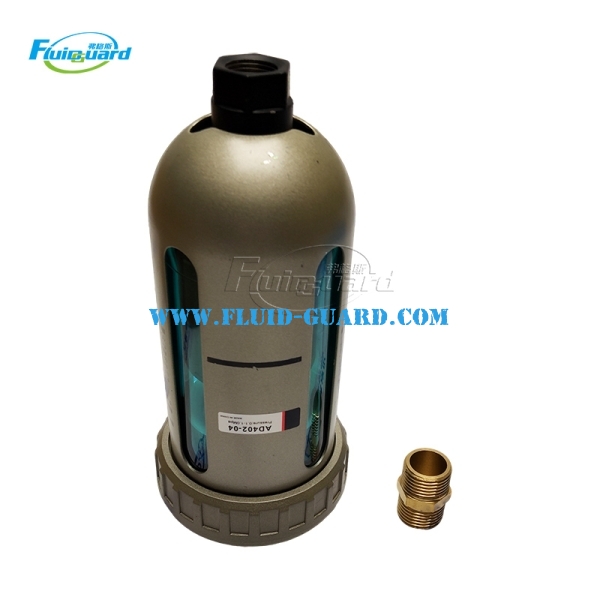

* Optional accessories: Differential pressure indicator / sight glass / Inner drainer/ External auto drainer

Applications :

* general industrial applications

* automotive
• electronics
• food and beverage
• chemical
• petrochemical
• plastics
